SMD Type

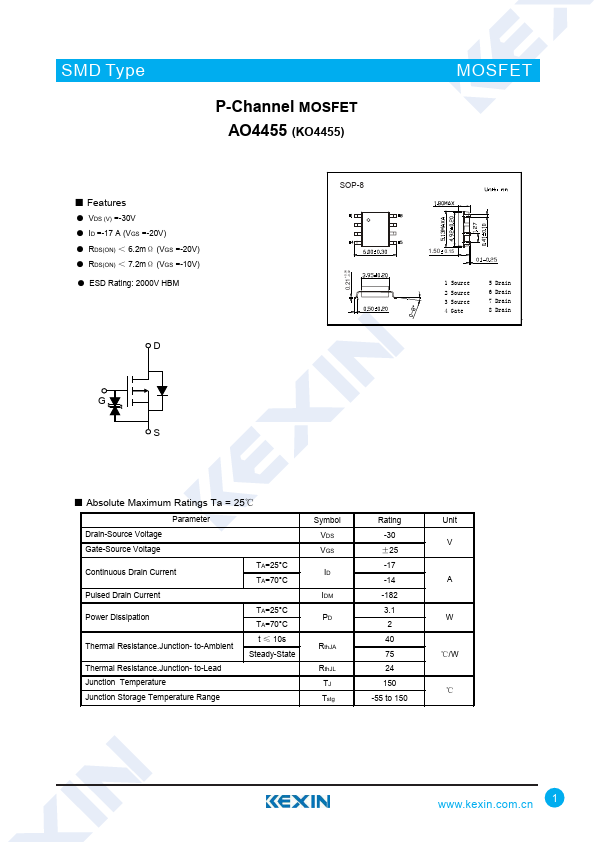

P-Channel MOSFET AO4455 (KO4455)
■ Features
● VDS (V) =-30V ● ID =-17 A (VGS =-20V) ● RDS(ON) ＜ 6.2mΩ (VGS =-20V) ● RDS(ON) ＜ 7.2mΩ (VGS =-10V)
● ESD Rating: 2000V HBM
SOP-8
+0.04 0.21 -0.02
D
G S
MOSFET
1.50 0.15
1 Source 2 Source 3 Source 4 Gate
5 Drain 6 Drain 7 Drain 8 Drain
■ Absolute Maximum Ratings Ta = 25℃
Drain-Source Voltage Gate-Source Voltage
Parameter
Continuous Drain Current Pulsed Drain Current Power Dissipation
Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Junction Storage Temperature Range
TA=25°C TA=70°C
TA=25°C TA=70°C t ≤ 10s Steady-State
Symbol VDS VGS ID
IDM PD
RthJA RthJL
TJ Tstg
Rating -30 ±25 -17 -14 -182 3.1 2 40 75 24 150
-55 to 150
Unit V A W

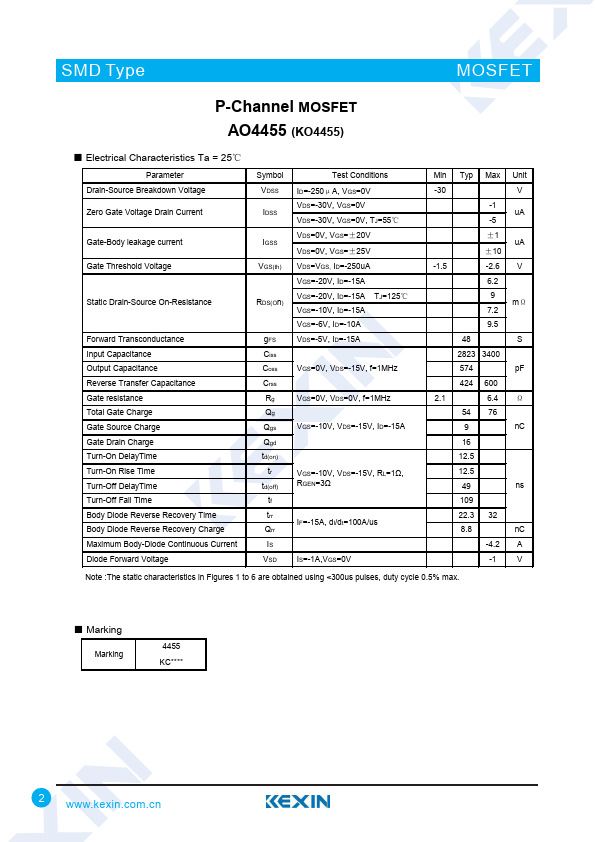

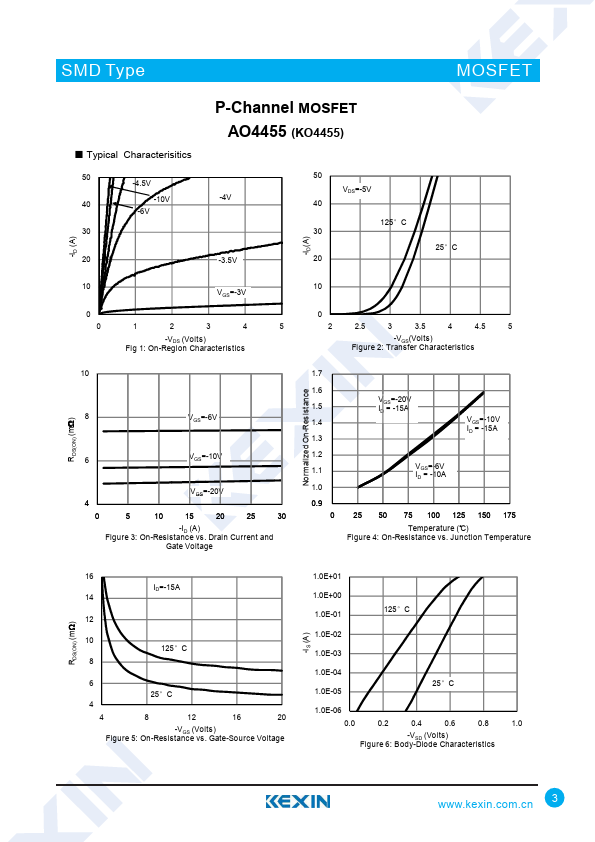

℃/W ℃
