AO4498E - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 18 A (VGS = 10V).
  • RDS(ON) ＜ 5.8mΩ (VGS = 10V).
  • RDS(ON) ＜ 8.5mΩ (VGS = 4.5V).
  • ESD Rating: 2KV HBM SOP-8 +0.04 0.21 -0.02 D G S MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resi.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4498E 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4498 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO4498 30V N-Channel MOSFET VBsemi
AO4490 N-Channel MOSFET Alpha & Omega Semiconductors
AO4492 30V N-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4498 N-Channel MOSFET
AO4490 N-Channel MOSFET
AO4492 N-Channel MOSFET
AO4494 N-Channel MOSFET
AO4496 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

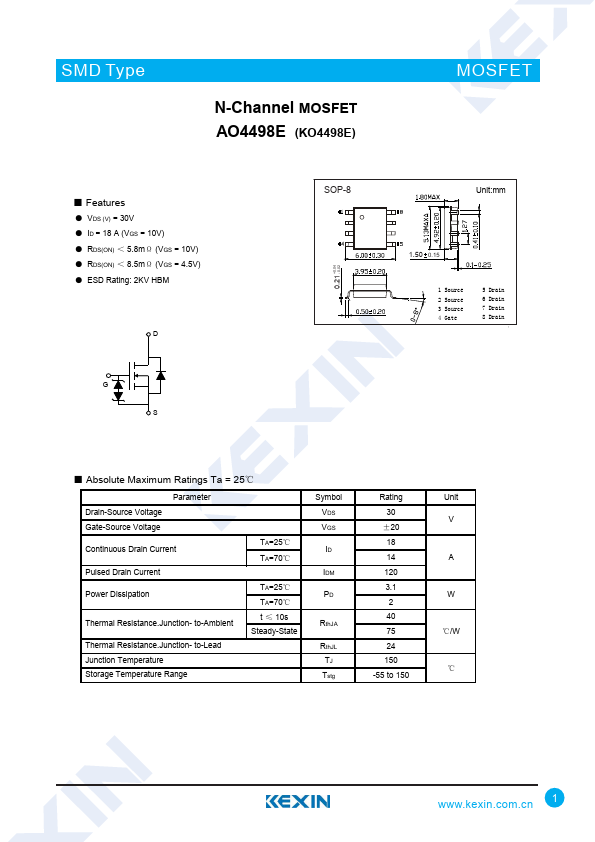

SMD Type N-Channel MOSFET AO4498E (KO4498E) ■ Features ● VDS (V) = 30V ● ID = 18 A (VGS = 10V) ● RDS(ON) ＜ 5.8mΩ (VGS = 10V) ● RDS(ON) ＜ 8.5mΩ (VGS = 4.5V) ● ESD Rating: 2KV HBM SOP-8 +0.04 0.21 -0.02 D G S MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating 30 ±20 18 14 120 3.1 2 40 75 24 150 -55 to 150 Unit V A W ℃/W ℃ www.kexin.com.
