AO4813 - Dual P-Channel MOSFET

Key Features

  • s.
  • VDS (V) = -30V.
  • ID = -7.1 A (VGS = -10V).
  • RDS(ON) ＜ 25mΩ (VGS = -10V).
  • RDS(ON) ＜ 40mΩ (VGS = -4.5V) +0.04 0.21 -0.02 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 D D G G S S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Lead.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4813 30V Dual P-Channel MOSFET Alpha & Omega Semiconductors
AO4813 Dual P-Channel MOSFET VBsemi
AO4811 Dual P-Channel MOSFET FreesCale
AO4812 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4812 Dual N-Channel 30V MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4812 Dual N-Channel MOSFET
AO4815 Dual P-Channel MOSFET
AO4817 Dual P-Channel MOSFET
AO4817-HF Dual P-Channel MOSFET
AO4818 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

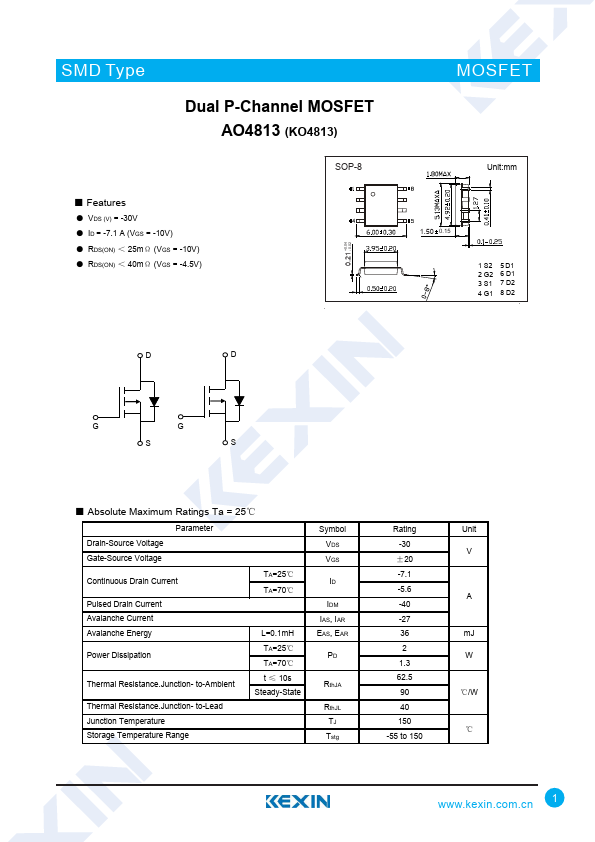

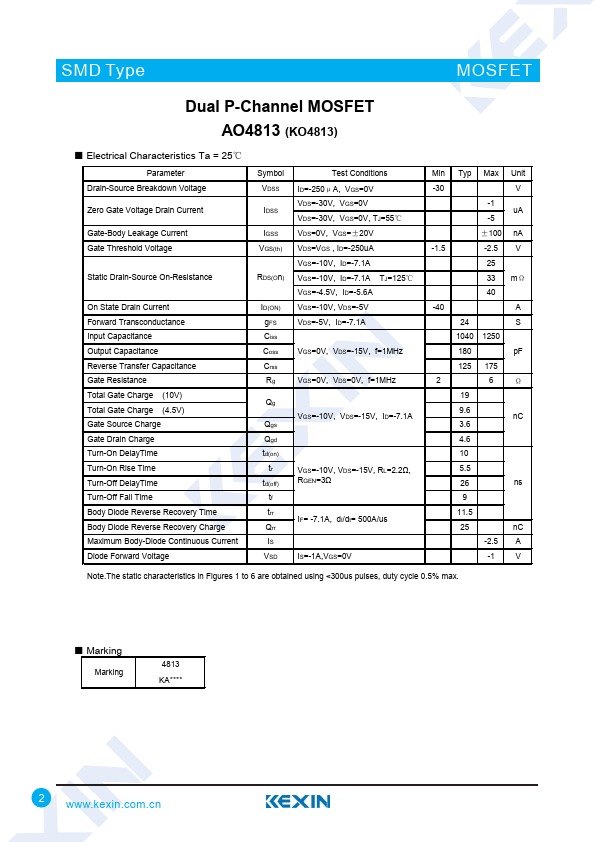

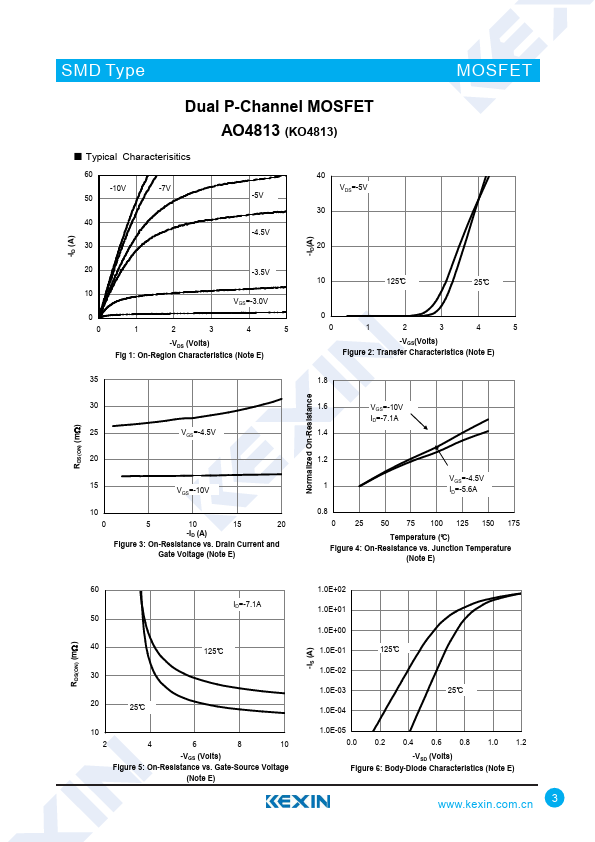

SMD Type Dual P-Channel MOSFET AO4813 (KO4813) SOP-8 ■ Features ● VDS (V) = -30V ● ID = -7.1 A (VGS = -10V) ● RDS(ON) ＜ 25mΩ (VGS = -10V) ● RDS(ON) ＜ 40mΩ (VGS = -4.5V) +0.04 0.21 -0.02 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 D D G G S S ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ L=0.1mH TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS, IAR EAS, EAR PD RthJA RthJL TJ Tstg Rating -30 ±20 -7.1 -5.6 -40 -27 36 2 1.3 62.
