| Part number | AO4812 |
|---|---|
| Manufacturer | Kexin Semiconductor |
| File Size | 887.12 KB |
| Description | Dual N-Channel MOSFET |
| Datasheet | AO4812-Kexin.pdf |
|
|

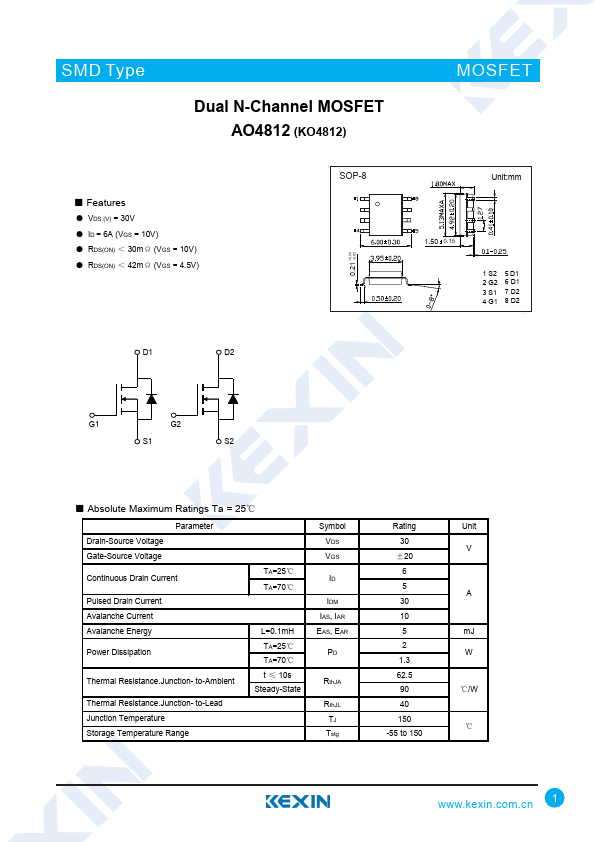

SMD Type Dual N-Channel MOSFET AO4812 (KO4812) ■ Features ● VDS (V) = 30V ● ID = 6A (VGS = 10V) ● RDS(ON) ＜ 30mΩ (VGS = 10V) ● RDS(ON) ＜ 42mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 D1 D2 G1 G2 S1 S2...
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
AO4812 | 30V Dual N-Channel MOSFET | Alpha - Omega Semiconductors |
 |
AO4812 | Dual N-Channel 30V MOSFET | VBsemi |
|
AO4812A | Dual N-Channel MOSFET | Alpha - Omega Semiconductors |
