| Part number | AO4818 |
|---|---|
| Manufacturer | Kexin Semiconductor |
| File Size | 1.26 MB |
| Description | Dual N-Channel MOSFET |
| Datasheet | AO4818-Kexin.pdf |
|
|

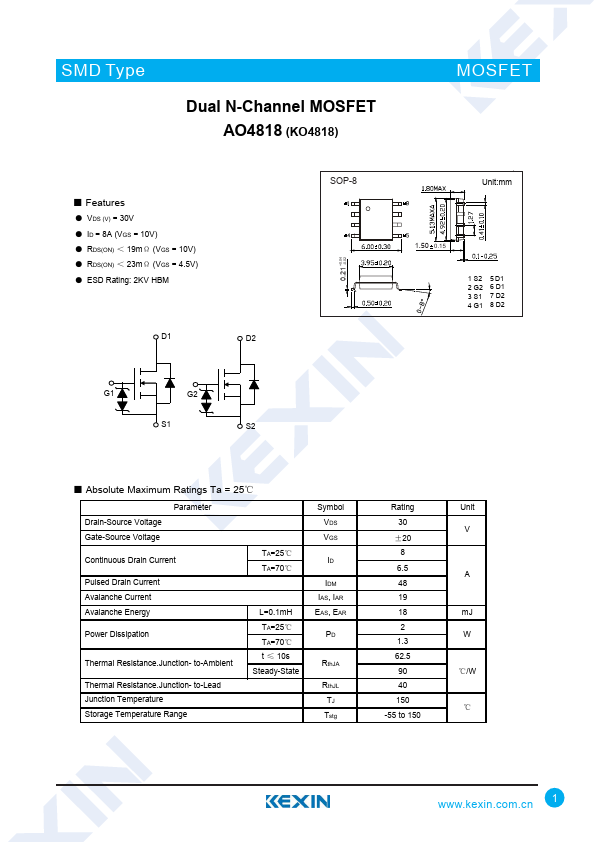

SMD Type Dual N-Channel MOSFET AO4818 (KO4818) MOSFET ■ Features ● VDS (V) = 30V ● ID = 8A (VGS = 10V) ● RDS(ON) ＜ 19mΩ (VGS = 10V) ● RDS(ON) ＜ 23mΩ (VGS = 4.5V) ● ESD Rating: 2KV HBM D1 D2 SOP-8 Unit:mm +0.04 0.21 -0.02 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 G1 G2 S1 S2...
