AO4850 - Dual N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 75V.
  • ID = 3.1A (VGS = 10V).
  • RDS(ON) ＜ 130mΩ (VGS = 10V).
  • RDS(ON) ＜ 165mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D1 D2 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 G1 G2 S1 S2.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistanc.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4850 Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4850 80V N-Channel MOSFET VBsemi
AO4852 60V Dual N-Channel MOSFET VBsemi
AO4852 60V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4852 N-Channel MOSFET FreesCale

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4852 Dual N-Channel MOSFET
AO4852-HF Dual N-Channel MOSFET
AO4854 Dual N-Channel MOSFET
AO4801 Dual P-Channel MOSFET
AO4803A Dual P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

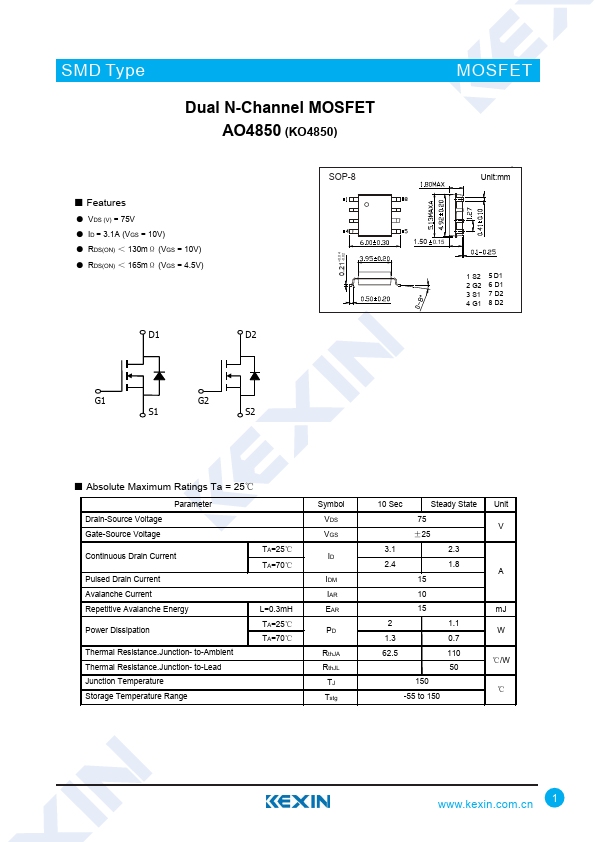

SMD Type Dual N-Channel MOSFET AO4850 (KO4850) ■ Features ● VDS (V) = 75V ● ID = 3.1A (VGS = 10V) ● RDS(ON) ＜ 130mΩ (VGS = 10V) ● RDS(ON) ＜ 165mΩ (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D1 D2 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 G1 G2 S1 S2 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ L=0.3mH TA=25℃ TA=70℃ Symbol VDS VGS ID IDM IAR EAR PD RthJA RthJL TJ Tstg 10 Sec Steady State 75 ±25 3.1 2.3 2.4 1.8 15 10 15 2 1.1 1.3 0.7 62.
