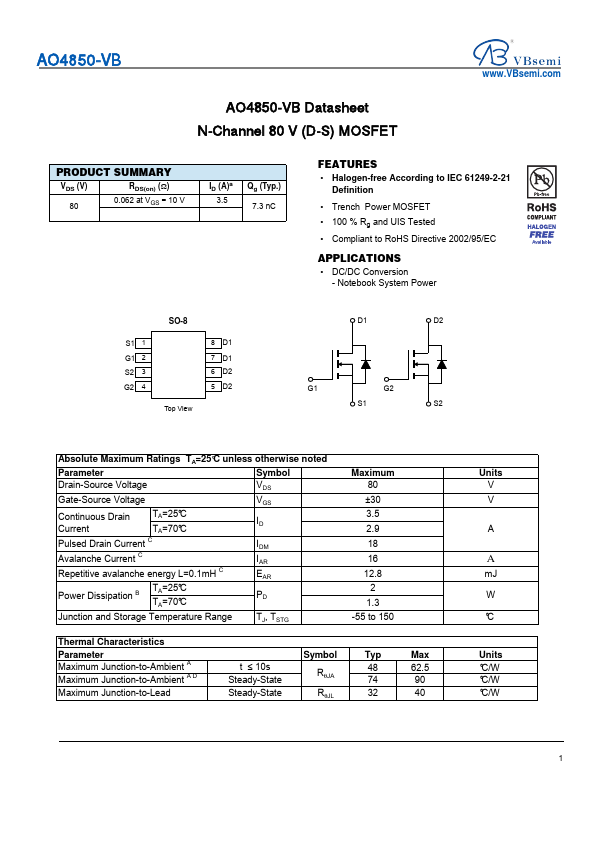

AO4850
AO4850 is 80V N-Channel MOSFET manufactured by VBsemi.
FEATURES
- Halogen-free According to IEC 61249-2-21
Definition
- Trench Power MOSFET
- 100 % Rg and UIS Tested
- pliant to Ro HS Directive 2002/95/EC
APPLICATIONS
- DC/DC Conversion
- Notebook System Power
S1 1 G1 2 S2 3 G2 4
SO-8 Top View
8 D1 7 D1 6 D2 5 D2
D1
D2
G1
G2
S1
S2
Absolute Maximum Ratings TA=25°C unless otherwise noted
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
TA=25°C TA=70°C
Pulsed Drain Current C
Avalanche Current C
Repetitive avalanche energy L=0.1m H C
Power Dissipation B
TA=25°C TA=70°C
Junction and Storage Temperature Range
TJ, TSTG
Maximum 80 ±30 3.5 2.9 18 16 12.8 2...
