AO6401 Datasheet P-channel MOSFET

Manufacturer: Kexin Semiconductor

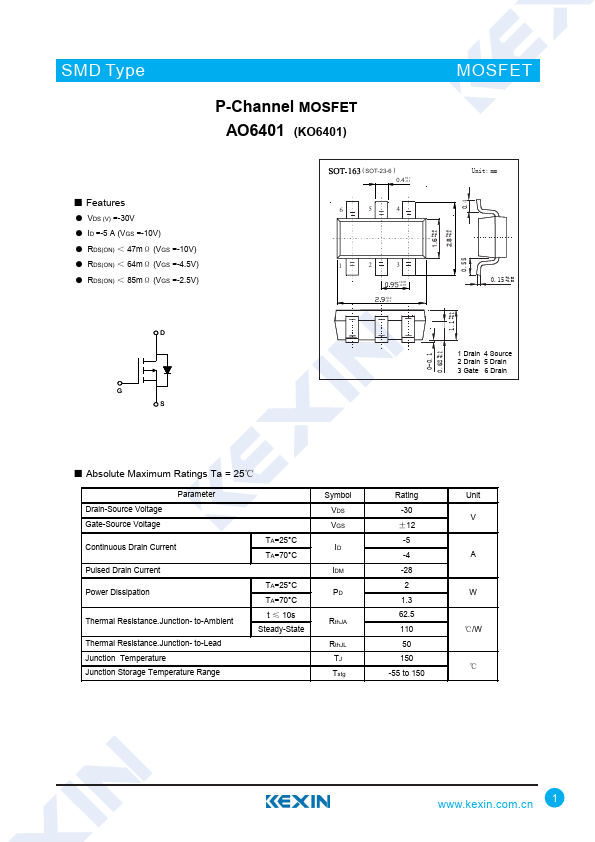

Overview: SMD Type P-Channel MOSFET AO6401 (KO6401) ■.

Datasheet Details

s.
VDS (V) =-30V.
ID =-5 A (VGS =-10V).
RDS(ON) ＜ 47mΩ (VGS =-10V).
RDS(ON) ＜ 64mΩ (VGS =-4.5V).
RDS(ON) ＜ 85mΩ (VGS =-2.5V) D ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 G S 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 +0.1 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain.
Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Curr.
