AO6401A
AO6401A is P-Channel MOSFET manufactured by Kexin Semiconductor.
SMD Type

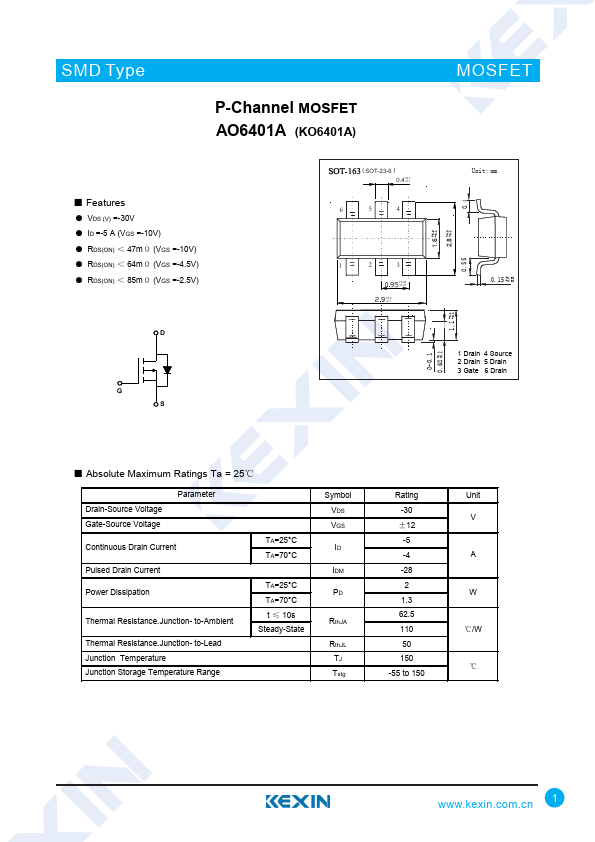

P-Channel MOSFET AO6401A (KO6401A)
- Features
- VDS (V) =-30V
- ID =-5 A (VGS =-10V)
- RDS(ON) ＜ 47mΩ (VGS =-10V)
- RDS(ON) ＜ 64mΩ (VGS =-4.5V)
- RDS(ON) ＜ 85mΩ (VGS =-2.5V)
( SOT-23-6 ) 0.4+0.1
-0.1
+0.01 -0.01 +0.2 -0.1
0-0.1 +0.1 0.68
-0.1
+0.2 1.6 -0.1
+0.2 2.8 -0.1
+0.1 1.1 -0.1
MOSFET
Unit: mm
0.15 +0.02 -0.02
1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain
-...
