BAT43W Datasheet Surface Mount Schottky Barrier Diode

Manufacturer: Kexin Semiconductor

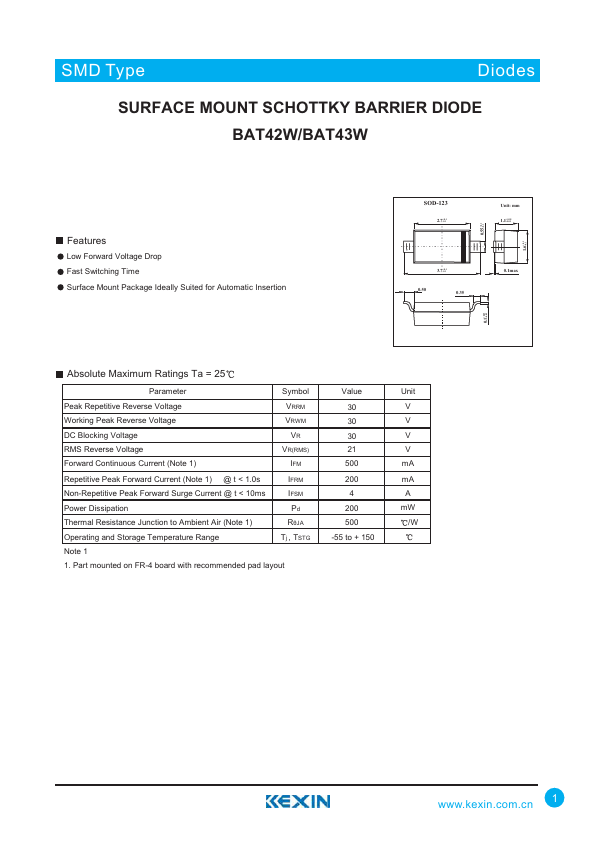

Overview: SMD Type Diodes SURFACE MOUNT SCHOTTKY BARRIER DIODE BAT42W/BAT43W +0.1 0.55 -0.1 +0.1 1.6 -0.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

Part number	BAT43W
Manufacturer	Kexin Semiconductor
File Size	35.13 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet	BAT43W BAT42W Datasheet (PDF)

Low Forward Voltage Drop Fast Switching Time Surface Mount Package Ideally Suited for Automatic Insertion SOD-123 2.7+0.1 -0.1 Unit: mm 1.1+0.05 -0.05 3.7+0.1 -0.1 0.50 0.35 0.1max +0.05 0.1 -0.02 Absolute Maximum Ratings Ta = 25 Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Symbol VRRM VRWM VR VR(RMS) IFM Repetitive Peak Forward Current (Note 1) @ t < 1.0s IFRM Non-Repetitive Peak For.
