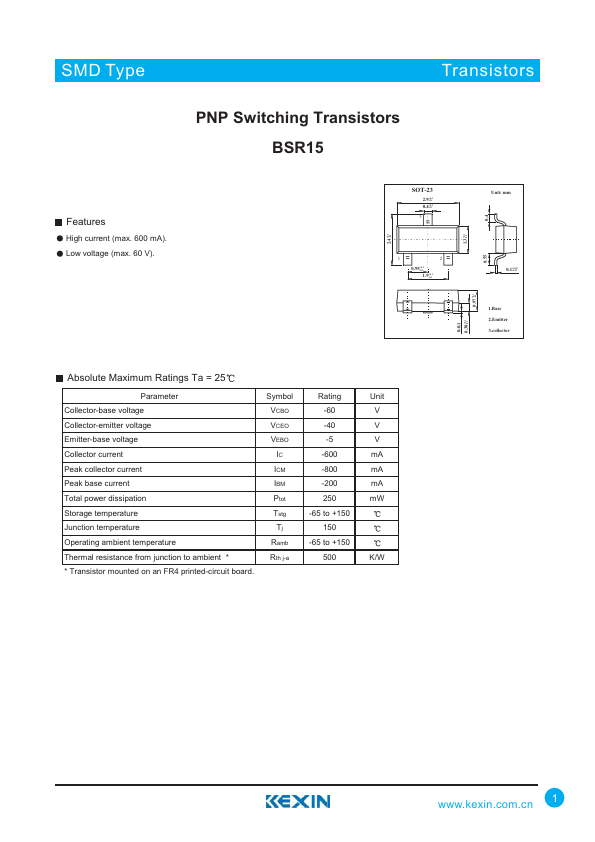

BSR15
Features
High current (max. 600 m A). Low voltage (max. 60 V).
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
0-0.1 +0.1 0.38
-0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1+0.05 -0.01
1.Base 2.Emitter 3.collector
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Rating
Unit
Collector-base voltage
VCBO
-60
Collector-emitter voltage
VCEO
-40
Emitter-base voltage
VEBO
-5
Collector current
-600 m A
Peak collector...
