KI3055 Datasheet N-channel Enhancement MOSFET

Manufacturer: Kexin Semiconductor

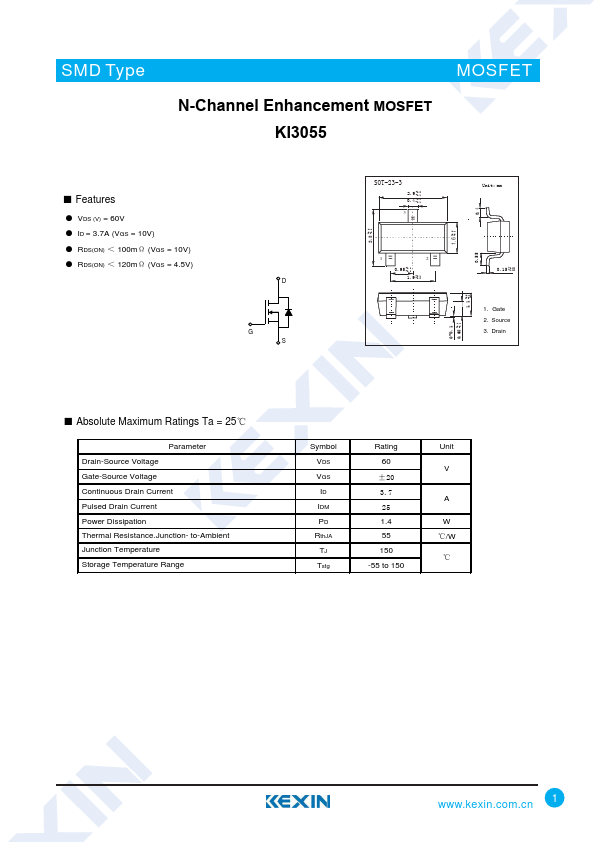

Overview: SMD Type MOSFET N-Channel Enhancement MOSFET KI3055 ■.

Datasheet Details

Part number	KI3055
Manufacturer	Kexin Semiconductor
File Size	1.33 MB
Description	N-Channel Enhancement MOSFET
Datasheet	KI3055-Kexin.pdf

s.
VDS (V) = 60V.
ID = 3.7A (VGS = 10V).
RDS(ON) ＜ 100mΩ (VGS = 10V).
RDS(ON) ＜ 120mΩ (VGS = 4.5V) D G S +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1.
Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Re.
