KI3305DS - N-Channel MOSFET

Key Features

  • s.
  • VDS = 60V.
  • ID = 2.3 A (VGS = 10V).
  • RDS(ON) ＜ 156mΩ (VGS = 10V).
  • RDS(ON) ＜ 192mΩ (VGS = 4.5V) G1 S2 3D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.68 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Tc=25℃ Continuous Drain Current Tc=70℃ Note.1 Ta=25℃ Note.1 Ta=70℃ Pu.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KI3800 Optical Light Source Kingfisher

Other Datasheets by Kexin Semiconductor

Part Number Description
KI3055 N-Channel Enhancement MOSFET
KI3055DY N-Channel MOSFET
KI30N03DFN N-Channel MOSFET
KI30P03DFN P-Channel MOSFET
KI3437DV P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

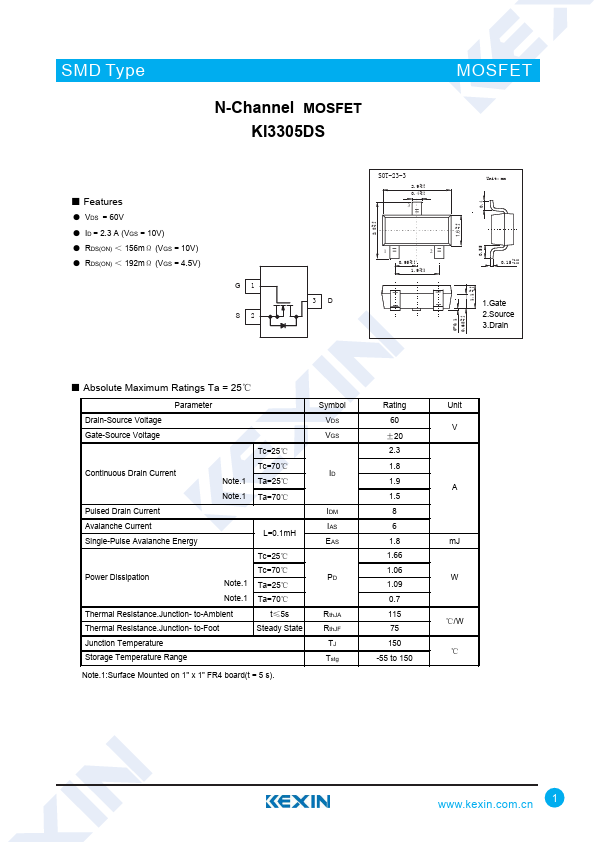

SMD Type N-Channel MOSFET KI3305DS MOSFET ■ Features ● VDS = 60V ● ID = 2.3 A (VGS = 10V) ● RDS(ON) ＜ 156mΩ (VGS = 10V) ● RDS(ON) ＜ 192mΩ (VGS = 4.5V) G1 S2 3D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.68 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Tc=25℃ Continuous Drain Current Tc=70℃ Note.1 Ta=25℃ Note.1 Ta=70℃ Pulsed Drain Current Avalanche Current Single-Pulse Avalanche Energy L=0.1mH Tc=25℃ Power Dissipation Note.1 Note.1 Tc=70℃ Ta=25℃ Ta=70℃ Thermal Resistance.Junction- to-Ambient t≤5s Thermal Resistance.
