NDT35N06 - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 35 A.
  • RDS(ON) ＜ 23mΩ (VGS = 10V) 2,4.
  • RDS(ON) ＜ 33mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 37mΩ (VGS = 4V) 1 3 + 9.70 0.2 - 0.2 TO-252 6.50+ 0.15 - 0.15 5.30+ 0.2 - 0.2 4 + 1.50 0.15 - 0.15 2.30+ 0.1 - 0.1 0.50 + 0.8 - 0.7 Unit: mm 3.80 + 5.55 0.15 - 0.15 + 0.50 0.15 - 0.15 + 1.50 0.28 - 0.1 0.80+0.1 -0.1 0.127 m ax + 0.25 2 .6 5 -0.1 2.3 4.60+ 0.15 - 0.15 0.60+ 0.1 - 0.1 1 : Gate 2 : Drain 3 : Source 4 : Drain.
  • Absolute Maximum Ratin.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDT3055 N-Channel MOSFET Fairchild
NDT3055 N-Channel Enhancement Mode Field Effect Transistor ON Semiconductor
NDT3055L N-Channel Logic Level Enhancement Mode Field Effect Transistor ON Semiconductor
NDT3055L N-Channel MOSFET Fairchild
NDT3055L N-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
NDT06N02 N-Channel MOSFET
NDT06N03 N-Channel MOSFET
NDT110N03 N-Channel MOSFET
NDT15N10 N-Channel MOSFET
NDT18N06 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

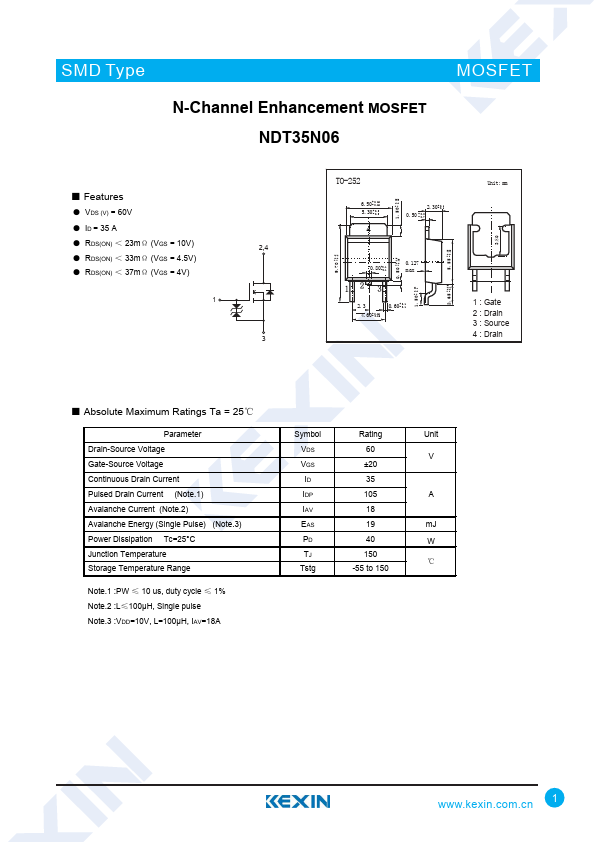

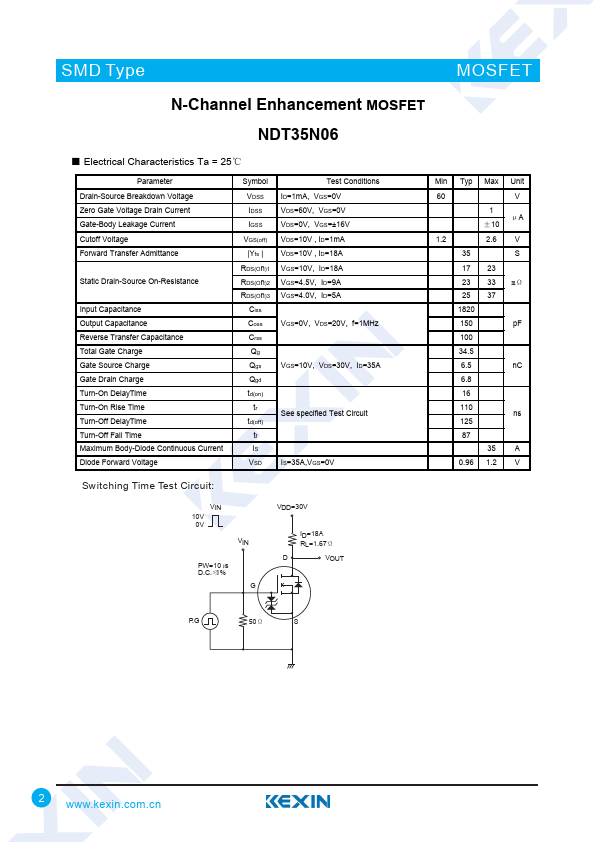

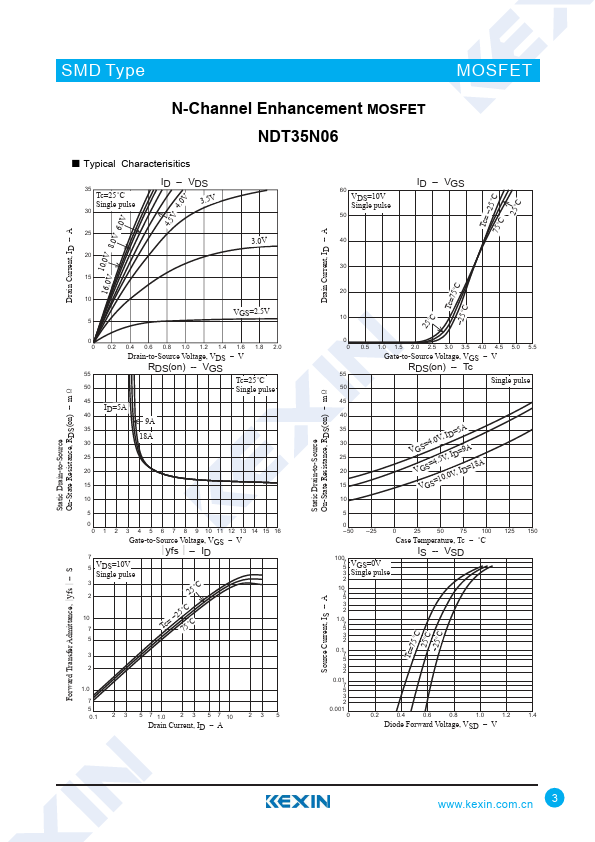

SMD Type N-Channel Enhancement MOSFET NDT35N06 MOSFET ■ Features ● VDS (V) = 60V ● ID = 35 A ● RDS(ON) ＜ 23mΩ (VGS = 10V) 2,4 ● RDS(ON) ＜ 33mΩ (VGS = 4.5V) ● RDS(ON) ＜ 37mΩ (VGS = 4V) 1 3 + 9.70 0.2 - 0.2 TO-252 6.50+ 0.15 - 0.15 5.30+ 0.2 - 0.2 4 + 1.50 0.15 - 0.15 2.30+ 0.1 - 0.1 0.50 + 0.8 - 0.7 Unit: mm 3.80 + 5.55 0.15 - 0.15 + 0.50 0.15 - 0.15 + 1.50 0.28 - 0.1 0.80+0.1 -0.1 0.127 m ax + 0.25 2 .6 5 -0.1 2.3 4.60+ 0.15 - 0.15 0.60+ 0.1 - 0.1 1 : Gate 2 : Drain 3 : Source 4 : Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Avalanche Current (Note.2) Avalanche Energy (Single Pulse) (Note.
