SI2319DS - P-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) =-40V.
  • ID =-3.0A (VGS =-10V).
  • RDS(ON) ＜ 82mΩ (VGS =-10V).
  • RDS(ON) ＜ 130mΩ (VGS =-4.5V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current.
  • 1 Ta = 25℃ Ta = 70℃ Pulsed Drain Current.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
Si2319DS P-Channel 40-V (D-S) MOSFET Vishay Siliconix
Si2319DDS 40V P-Channel MOSFET Vishay
Si2319 P-Channel Enhancement MOSFET Nanxin
SI2319A SOT-23 Plastic-Encapsulate MOSFETS UDF
SI2319A -40V P-ChanneI MOSFET UMW

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2312DS N-Channel Enhancement MOSFET
SI2314EDS N-Channel Enhancement MOSFET
SI2315BDS P-Channel Enhancement MOSFET
SI2318CDS N-Channel MOSFET
SI2318DS N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

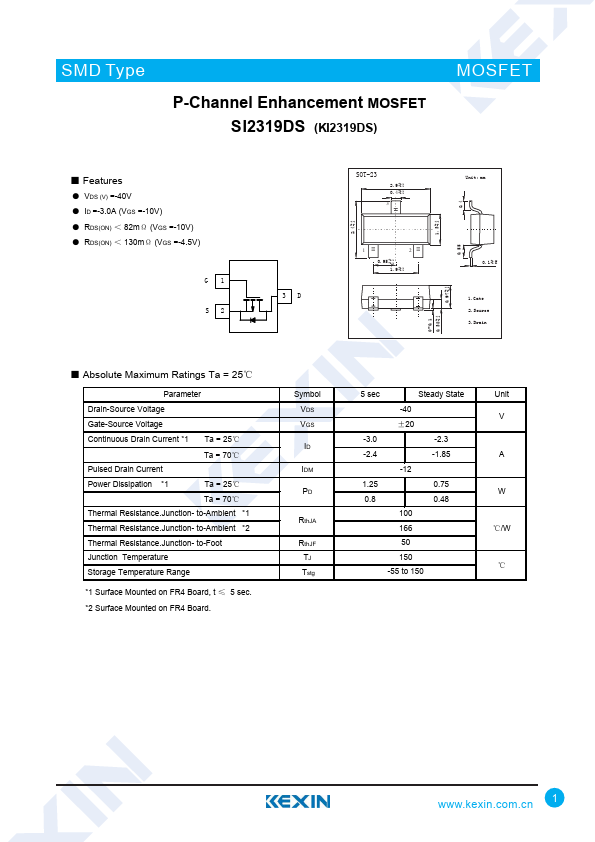

SMD Type P-Channel Enhancement MOSFET SI2319DS (KI2319DS) MOSFET ■ Features ● VDS (V) =-40V ● ID =-3.0A (VGS =-10V) ● RDS(ON) ＜ 82mΩ (VGS =-10V) ● RDS(ON) ＜ 130mΩ (VGS =-4.5V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current *1 Ta = 25℃ Ta = 70℃ Pulsed Drain Current Power Dissipation *1 Ta = 25℃ Ta = 70℃ Thermal Resistance.Junction- to-Ambient *1 Thermal Resistance.Junction- to-Ambient *2 Thermal Resistance.
