SSM3J135TU - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) = -20 V.
  • ID = -3.0 A.
  • 1.5 V drive.
  • Low ON-resistance: RDS(ON) = 260 mΩ (max) (@VGS = -1.5 V) RDS(ON) = 180 mΩ (max) (@VGS = -1.8 V) RDS(ON) = 132 mΩ (max) (@VGS = -2.5 V) RDS(ON) = 103 mΩ (max) (@VGS = -4.5 V) 3 TraMnOsiSsFtoErsT 1.Gate 2.Source 3.Drain 1 2.
  • Absolute Maximum Ratings (Ta = 25℃) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Junction Temperature Storage Temperature Range S.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SSM3J135TU Silicon P-Channel MOSFET Toshiba
SSM3J130TU Silicon P-Channel MOSFET Toshiba
SSM3J132TU Silicon P-Channel MOSFET Toshiba Semiconductor
SSM3J133TU Silicon P-Channel MOSFET Toshiba
SSM3J134TU Silicon P-Channel MOSFET Toshiba

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

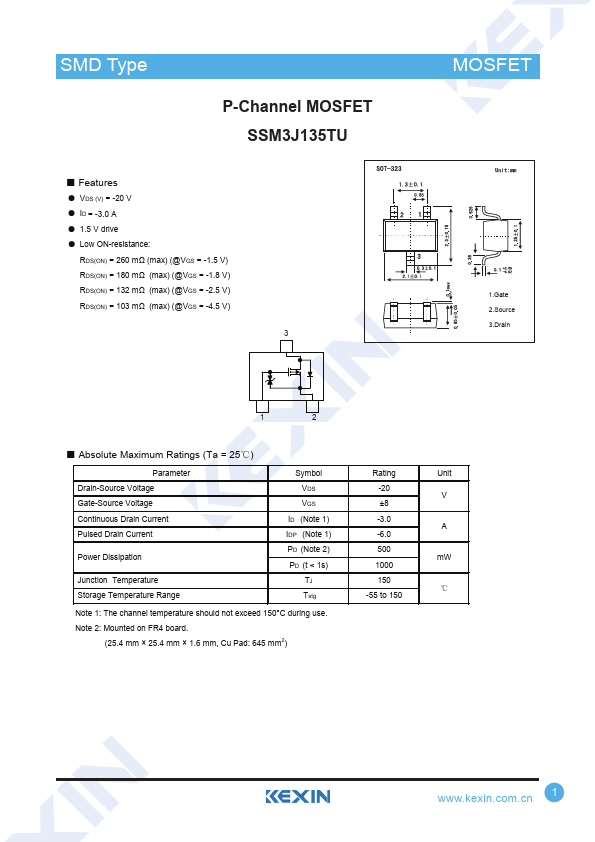

SMD Type P-Channel MOSFET SSM3J135TU ■ Features ● VDS (V) = -20 V ● ID = -3.0 A ● 1.5 V drive ● Low ON-resistance: RDS(ON) = 260 mΩ (max) (@VGS = -1.5 V) RDS(ON) = 180 mΩ (max) (@VGS = -1.8 V) RDS(ON) = 132 mΩ (max) (@VGS = -2.5 V) RDS(ON) = 103 mΩ (max) (@VGS = -4.5 V) 3 TraMnOsiSsFtoErsT 1.Gate 2.Source 3.Drain 1 2 ■ Absolute Maximum Ratings (Ta = 25℃) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Junction Temperature Storage Temperature Range Symbol Rating Unit VDS -20 V VGS ±8 ID (Note 1) -3.0 A IDP (Note 1) -6.0 PD (Note 2) PD (t < 1s) 500 mW 1000 TJ 150 ℃ Tstg -55 to 150 Note 1: The channel temperature should not exceed 150°C during use. Note 2: Mounted on FR4 board. (25.4 mm × 25.
