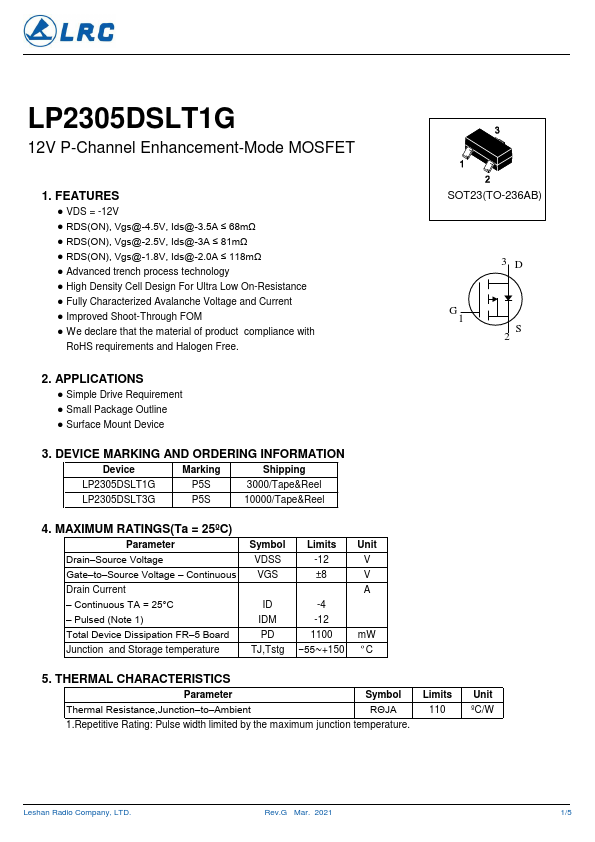

LP2305DSLT1G Datasheet P-channel MOSFET

Manufacturer: LRC

Overview: LESHAN RADIO PANY, LTD. 8V P-Channel Enhancement-Mode MOSFET VDS= -8V RDS(ON), Vgs@-4.5V, Ids@"3.5A = 68 mΩ RDS(ON), Vgs@-2.5V, Ids@"3A = 81 mΩ RDS(ON), Vgs@-1.

Datasheet Details

Part number LP2305DSLT1G
Manufacturer LRC
File Size 303.85 KB
Description P-Channel MOSFET
Datasheet LP2305DSLT1G-LRC.pdf

Key Features

  • Advanced trench process technology High Density Cell Design For Ultra Low On-Resistance Fully Characterized Avalanche Voltage and Current Improved Shoot-Through FOM we declare that the material of product compliance with RoHS requirements . S- Prefix for Automotive and Other.
