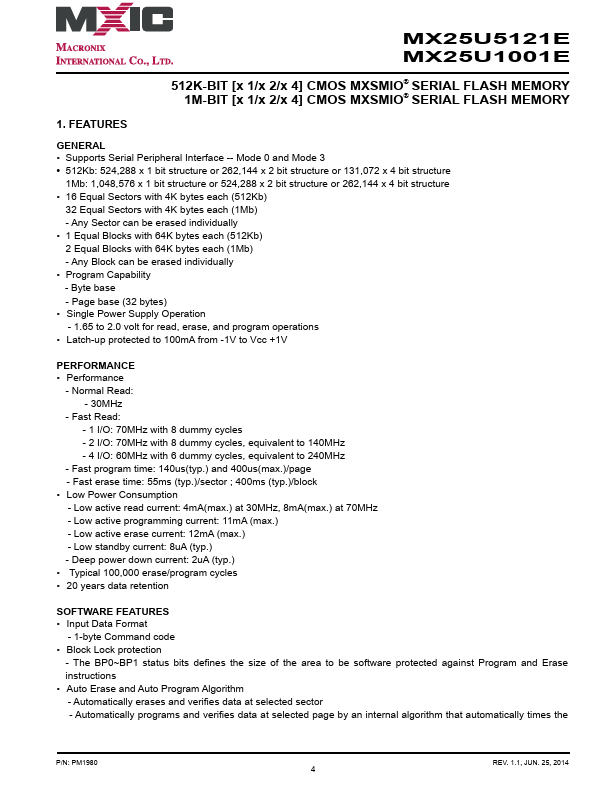

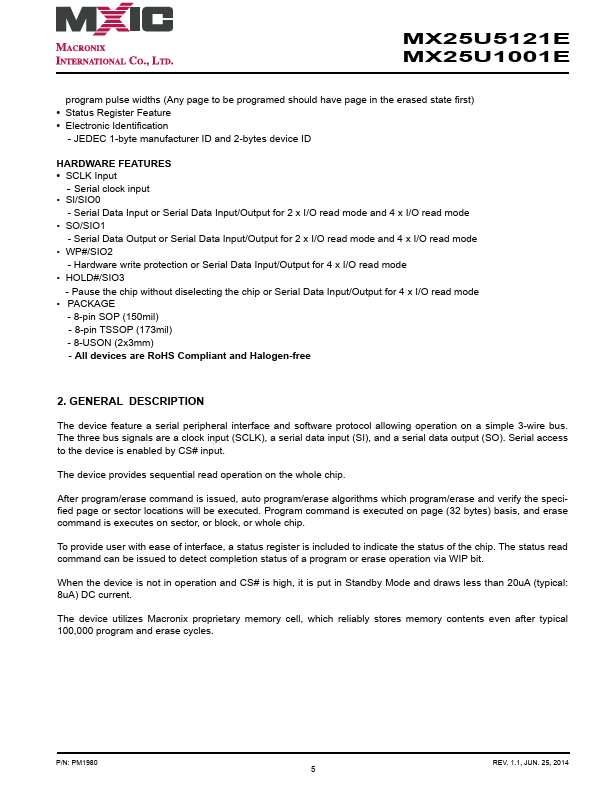

FEATURES GENERAL - Supports Serial Peripheral Interface -- Mode 0 and Mode 3 - 512Kb: 524,288 x 1 bit structure or 262,144 x 2 bit structure or 131,072 x 4 bit structure 1Mb: 1,048,576 x 1 bit structure or 524,288 x 2 bit structure or 262,144 x 4 bit structure - 16 Equal Sectors with 4K bytes each (512Kb) 32 Equal Sectors with 4K bytes each (1Mb) - Any Sector can be erased individually - 1 Equal Blocks with 64K bytes each (512Kb) 2 Equal Blocks with 64K bytes each (1Mb) - Any Block can be erased individually - Program Capability - Byte base - Page base (32 bytes) - Single Power Supply Operation - 1.65 to 2.0 volt for read, erase, and program operations - Latch-up protected to 100m A from -1V to Vcc +1V PERFORMANCE - Performance - Normal Read: - 30MHz - Fast Read: - 1 I/O: 70MHz with 8 dummy cycles - 2 I/O: 70MHz with 8 dummy cycles, equivalent to 140MHz - 4 I/O: 60MHz with 6 dummy cycles, equivalent to 240MHz - Fast program time: 140us(typ.) and 400us(max.)/page - Fast erase time: 55ms (typ.)/sector ; 400ms (typ.)/block - Low Power Consumption - Low active read current: 4m A(max.) at 30MHz, 8m A(max.) at 70MHz - Low active programming current: 11m A (max.) - Low active erase current: 12m A (max.) - Low standby current: 8u A (typ.) - Deep power down current: 2u A (typ.) - Typical 100,000 erase/program cycles - 20 years data retention SOFTWARE FEATURES - Input Data Format - 1-byte mand code - Block Lock protection - The BP0~BP1 status bits defines the size of the area to be software protected against Program and Erase instructions - Auto Erase and Auto Program Algorithm...
