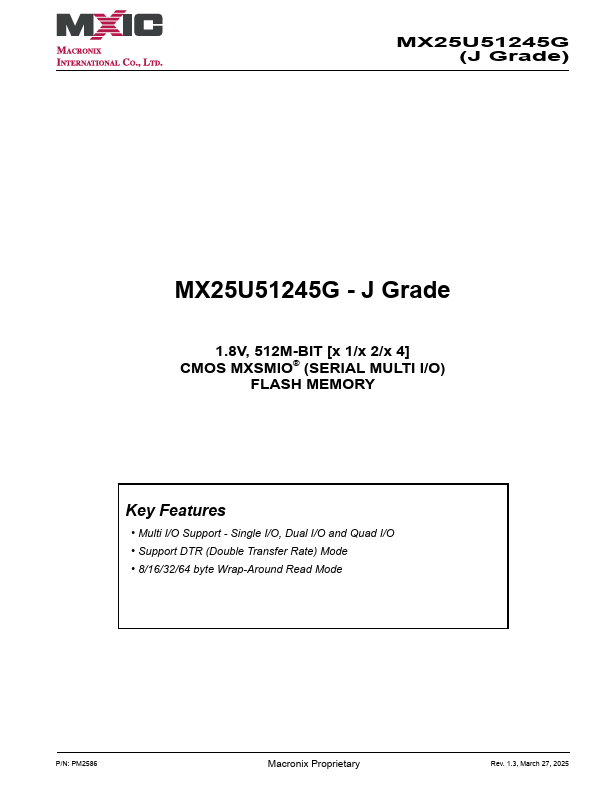

MX25U51245G-J
MX25U51245G-J is 1.8V 512M-BIT CMOS FLASH MEMORY manufactured by Macronix.
Features
- Multi I/O Support
- Single I/O, Dual I/O and Quad I/O
- Support DTR (Double Transfer Rate) Mode
- 8/16/32/64 byte Wrap-Around Read Mode
P/N: PM2586
Macronix Proprietary
Rev. 1.3, March 27, 2025
MX25U51245G (J Grade)

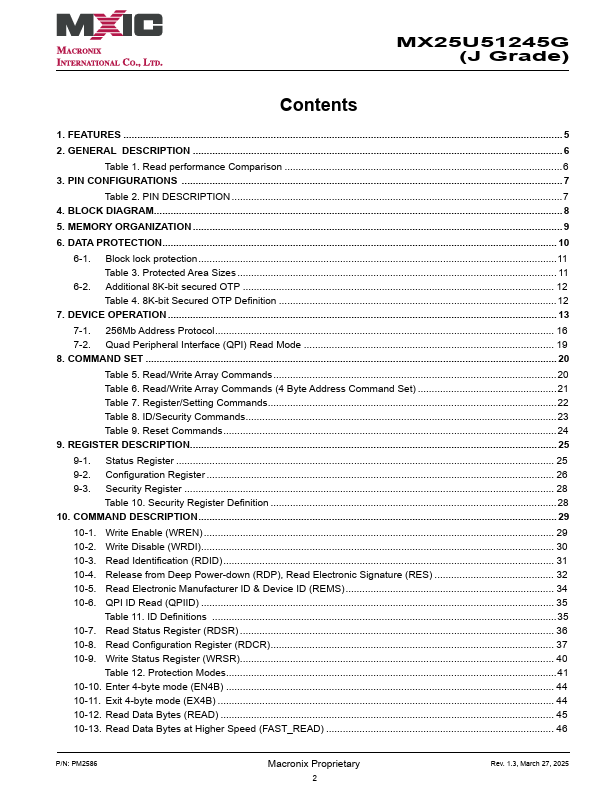

Contents
1. FEATURES
5 2. GENERAL DESCRIPTION
Table 1. Read performance parison 6 3. PIN CONFIGURATIONS 7
Table 2. PIN DESCRIPTION
7 4. BLOCK DIAGRAM 8 5. MEMORY ORGANIZATION 9 6. DATA PROTECTION 10
6-1. Block lock protection 11 Table 3. Protected Area Sizes 11
6-2. Additional 8K-bit secured OTP 12 Table 4. 8K-bit Secured OTP...
