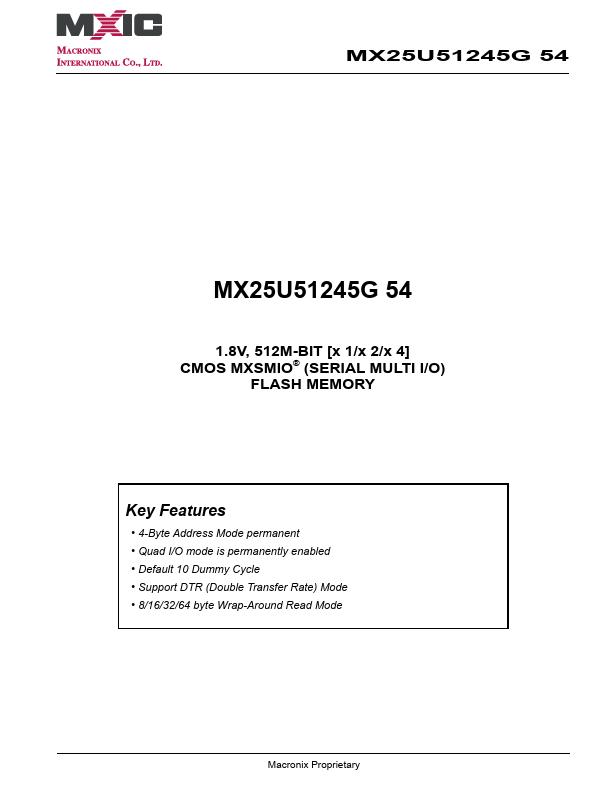

MX25U51245G54
MX25U51245G54 is 1.8V 512M-BIT CMOS FLASH MEMORY manufactured by Macronix.
Features
- 4-Byte Address Mode permanent
- Quad I/O mode is permanently enabled
- Default 10 Dummy Cycle
- Support DTR (Double Transfer Rate) Mode
- 8/16/32/64 byte Wrap-Around Read Mode
Macronix Proprietary
MX25U51245G 54
1. FEATURES
1.8V 512M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY
GENERAL
- Supports Serial Peripheral Interface -- Mode 0 and
Mode 3
- Single Power Supply Operation
- 1.65 to 2.0 volt for read, erase, and program operations
- 512Mb: 536,870,912 x 1 bit structure or 268,435,456 x 2 bits (two I/O mode) structure or
134,217,728 x 4 bits (four I/O mode) structure
- Protocol Support
- Single I/O, Dual I/O and Quad I/O
- Latch-up protected to 100m A from -1V to Vcc +1V
- Fast read for SPI mode
- Support fast clock frequency up to 166MHz
- Support Fast Read, 2READ, DREAD, 4READ, QREAD instructions
- Support DTR (Double Transfer Rate) Mode
- Configurable dummy cycle number for fast read operation
- Support Performance Enhance Mode
- XIP (execute-in-place)
- Permanently fixed QE bit (The Quad Enable bit); QE=1 and 4 I/O mode is always enabled.
- Quad Peripheral Interface (QPI) available
- Equal Sectors with 4K byte each, or Equal Blocks with 32K byte each or Equal Blocks with 64K byte each
- Any Block can be erased individually
- Programming :
- 256byte page buffer
- Quad Input/Output page program(4PP) to enhance program performance
- Typical 100,000 erase/program cycles
- 20 years data retention
SOFTWARE FEATURES
- Input Data Format
- 1-byte mand code
- Advanced Security...
