2SB1260 Datasheet | Micro Commercial Components

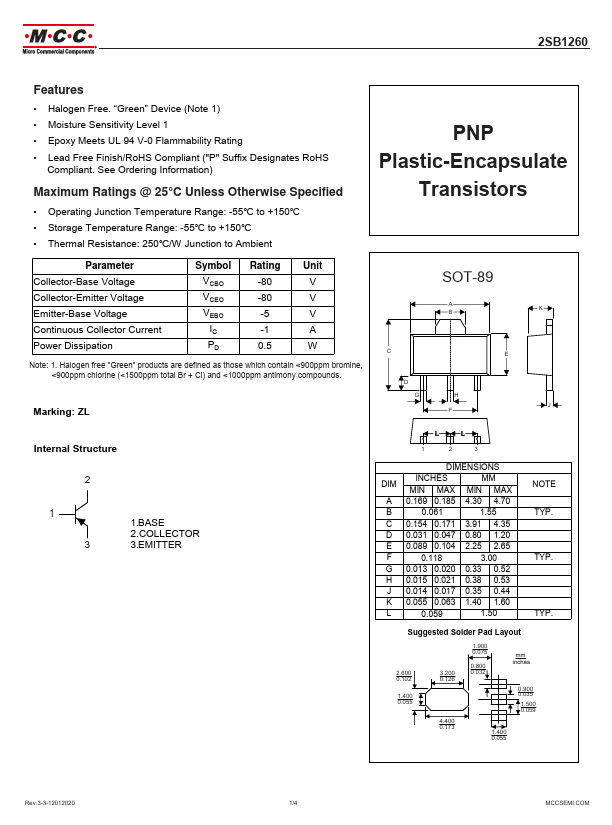

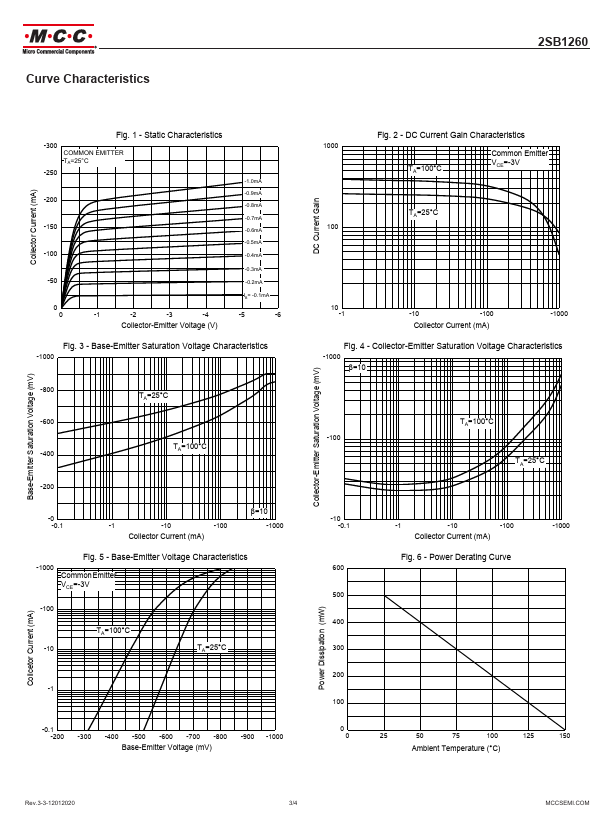

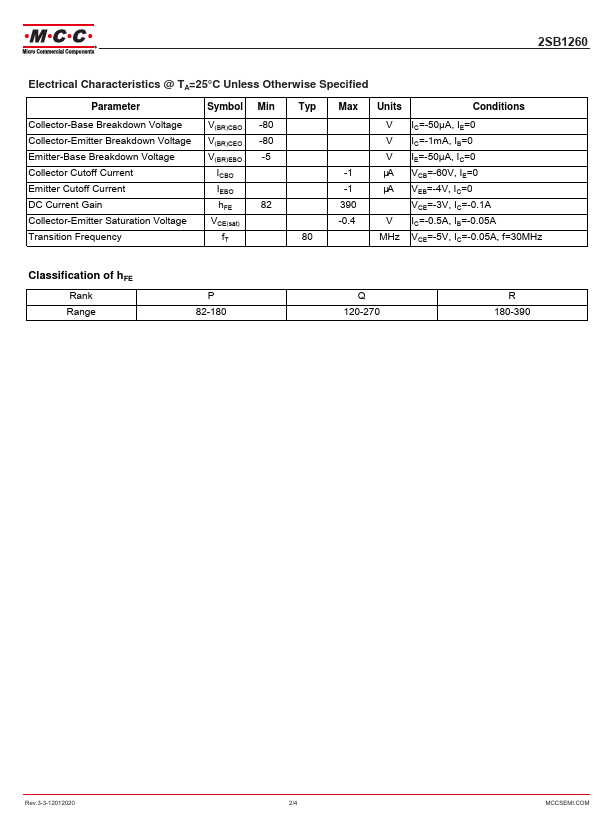

Features - Halogen Free. “Green” Device (Note 1) - Moisture Sensitivity Level 1 - Epoxy Meets UL 94 V-0 Flammability Rating - Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information) Maximum Ratings @ 25°C Unless Otherwise Specified - Operating Junction Temperature Range: -55℃ to +150℃ - Storage Temperature Range: -55℃ to +150℃ - Thermal Resistance: 250℃/W Junction to Ambient Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC PD Rating -80 -80 -5 -1 0.5 Unit V V V A W Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds. Marking: ZL Internal Structure 1 3 1.BASE 2.COLLECTOR 3.EMITTER PNP Plastic-Encapsulate Transistors SOT-89 DIMENSIONS INCHES MIN MAX MIN MAX A 0.169 0.185 4.30 4.70 C 0.154 0.171 3.91 4.35 D 0.031 0.047 0.80 1.20 E 0.089 0.104 2.25 2.65 G 0.013 0.020 0.33 0.52 H 0.015 0.021 0.38 0.53 J 0.014 0.017 0.35 0.44 K 0.055 0.063 1.40 1.60 NOTE TYP....
