2SB1260 - Power Transistor

Key Features

  • z High breakdown voltage and high current. BVCEO=-80V,IC=-1A z Good hFEVLinearity. z Low VCE(sat). z Complements the 2SD1898. Pb Lead-free.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1260 Power Transistor Rohm
2SB1260 PNP Transistor HOTTECH
2SB1260 Plastic-Encapsulate Transistors WILLAS
2SB1260 PNP Transistor JinYu
2SB1260 PNP Transistors Kexin

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SB1261 PNP Epitaxial Planar Silicon Transistors
2SB1202 PNP Epitaxial Planar Silicon Transistors
2SB1218A PNP Silicon Transistor
2SB1240 Medium Power Transistor
2SB1243 Power Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

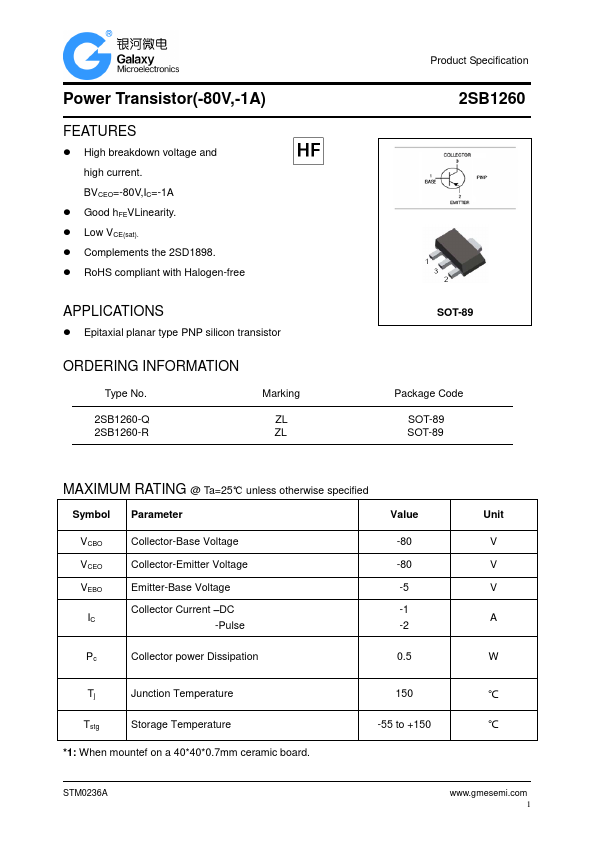

Power Transistor(-80V,-1A) FEATURES z High breakdown voltage and high current. BVCEO=-80V,IC=-1A z Good hFEVLinearity. z Low VCE(sat). z Complements the 2SD1898. Pb Lead-free APPLICATIONS z Epitaxial planar type PNP silicon transistor Production specification 2SB1260 SOT-89 ORDERING INFORMATION Type No. Marking 2SB1260 ZL Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO VEBO IC Pc Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current –DC -Pulse Collector power Dissipation -80 -80 -5 -1 -2 0.5 2 *1 Tj Junction Temperature 150 Tstg Storage Temperature *1: When mountef on a 40*40*0.7mm ceramic board. -55 to +150 Unit V V V A W ℃ ℃ E045 Rev.A www.gmicroelec.
