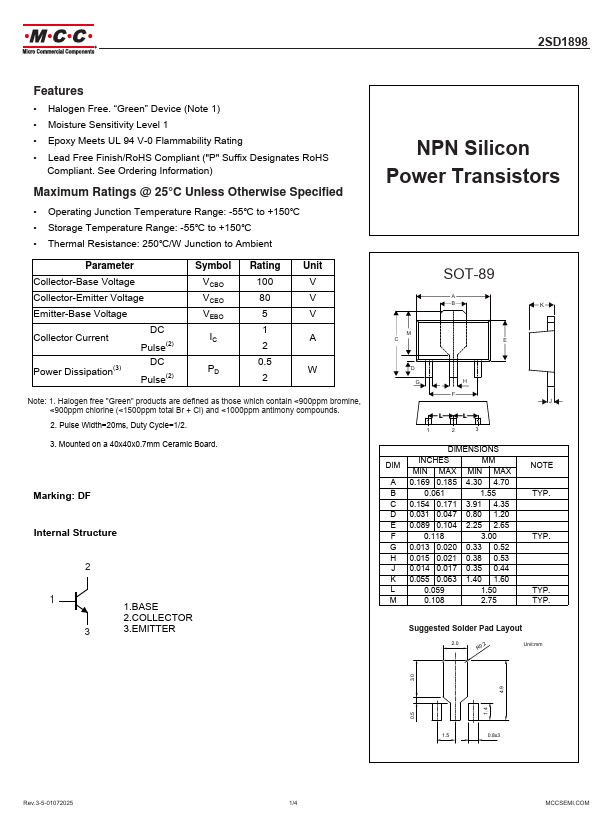

2SD1898
Features
- Halogen Free. “Green” Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings @ 25°C Unless Otherwise Specified
- Operating Junction Temperature Range: -55℃ to +150℃
- Storage Temperature Range: -55℃ to +150℃
- Thermal Resistance: 250℃/W Junction to Ambient
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current Power Dissipation(3)
DC Pulse(2)
DC Pulse(2)
Symbol VCBO VCEO VEBO
Rating 100 80 5 1 2 0.5 2
Unit V V V
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds. 2. Pulse Width=20ms, Duty Cycle=1/2.
3. Mounted on a 40x40x0.7mm Ceramic Board.
Marking: DF
Internal Structure
1 3
1.BASE 2.COLLECTOR 3.EMITTER
NPN Silicon Power Transistors
