MLSM 2SC4548
NPN Transistor
| Part No. | 2SC4548 |
|---|---|
| Datasheet | 2SC4548 Download |
| Manufacturer |  MLSM |
| Description | NPN Transistor |
| Buy | Stock & Price |

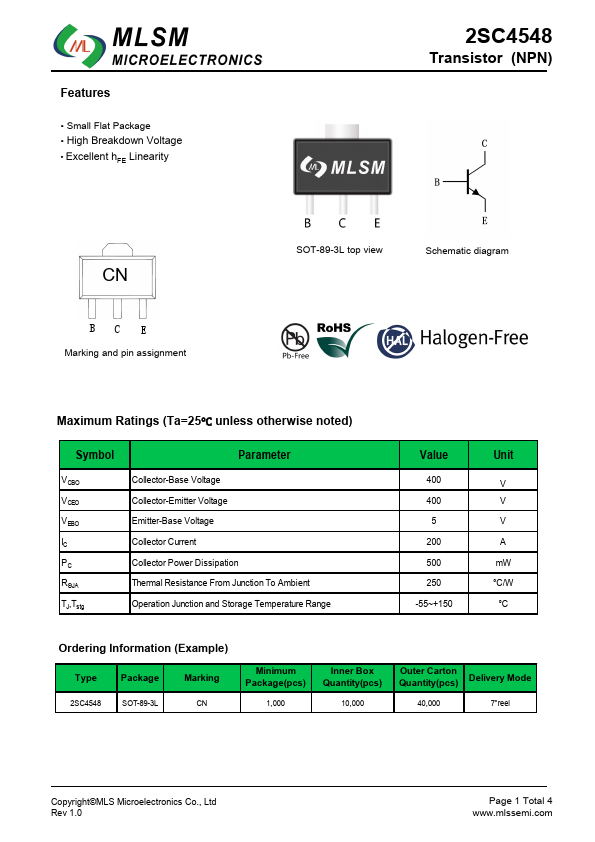

FEATURES
● Small Flat Package● High Breakdown Voltage
● Excellent hFE Linearity 2SC4548 Transistor (NPN) X:Rank CN BC E Marking and pin assignment SOT-89-3L top view Schematic diagram
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value Unit 400 400 5 200 500 250 -55~+150 V V V A mW °C/W °C Ordering Information (Example) Type 2SC4548 Package SOT-89-3L Marking CN Minimum Package(pcs) 1,000 Inner Box Quantity(pcs) 10,000 Outer Carton Quantity(pcs) Delivery Mode 40,000 7"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 4 2SC4548 Transistor (NPN)ELECTRICAL CHARACTERISTICS

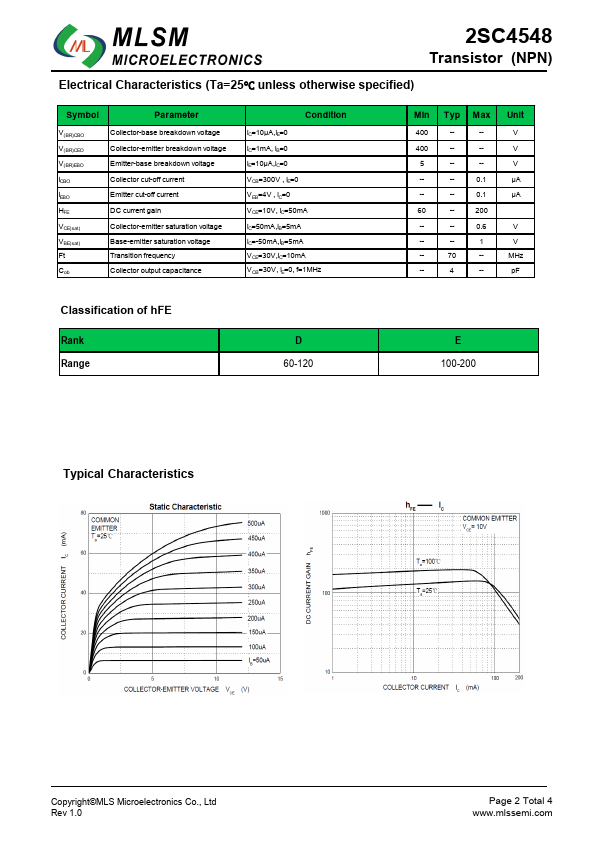

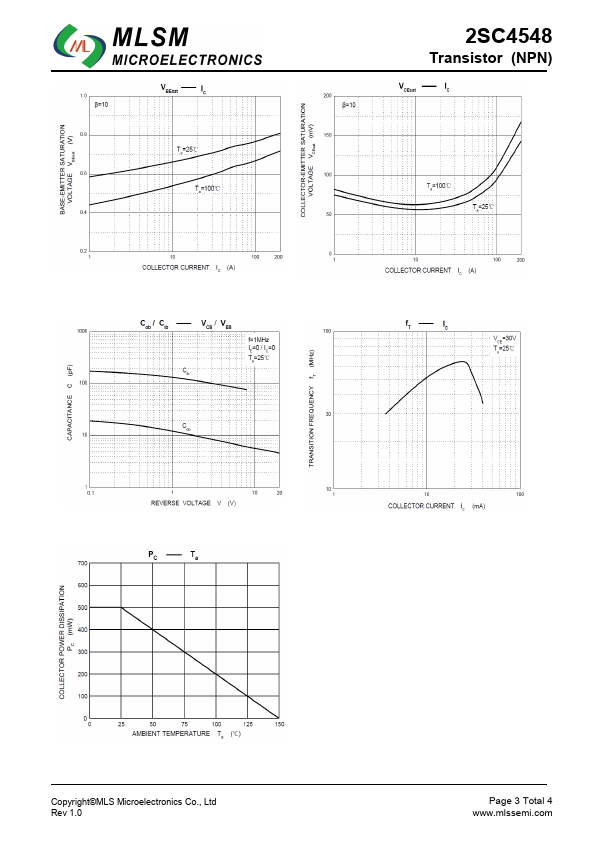

(Ta=25℃ unless otherwise specified) Symbol Parameter V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO HFE VCE(sat) VBE(sat) Ft Cob Collector-base breakdown v...
