2SD1898 Datasheet NPN Transistor

Manufacturer: MLSM

📥 Download Datasheet

Datasheet Details

Part number 2SD1898
Manufacturer MLSM
File Size 910.16 KB
Description NPN Transistor
Datasheet download datasheet 2SD1898 Datasheet

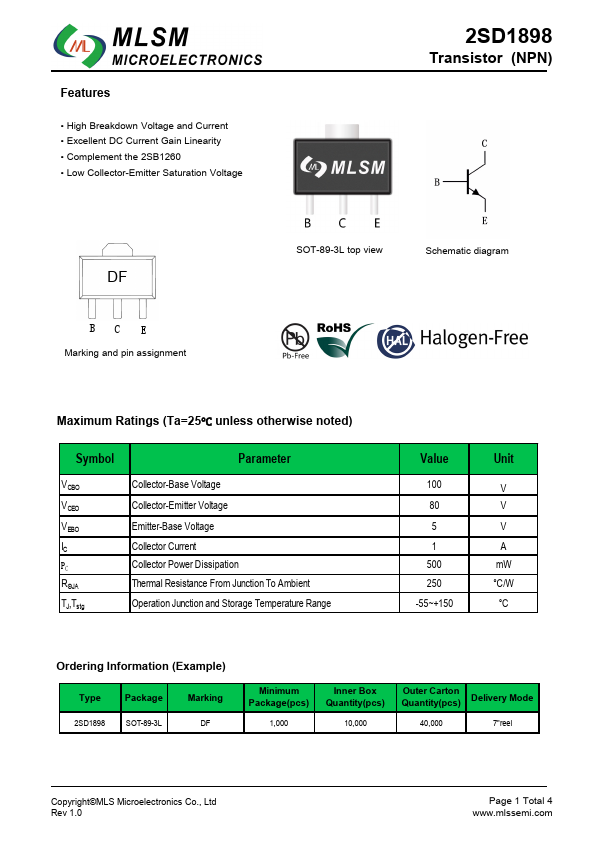

Key Features

  • High Breakdown Voltage and Current.
  • Excellent DC Current Gain Linearity.
  • Complement the 2SB1260.
  • Low Collector-Emitter Saturation Voltage 2SD1898 Transistor (NPN) DF BC E Marking and pin assignment SOT-89-3L top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol Parameter VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Ther.
