BF822 Datasheet NPN Transistor

Manufacturer: MLSM

This datasheet includes multiple variants, all published together in a single manufacturer document.

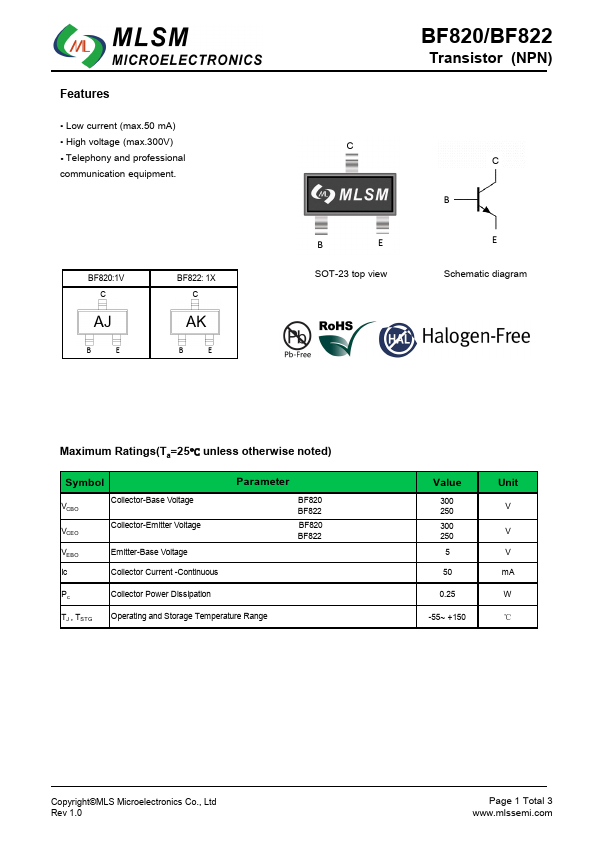

BF822 datasheet preview

Datasheet Details

Part number	BF822
Manufacturer	MLSM
File Size	585.60 KB
Description	NPN Transistor
Datasheet	BF822 BF820 Datasheet (PDF)

Key Features

Low current (max.50 mA).
High voltage (max.300V).
Telephony and professional communication equipment. BF820:1V C AJ B E BF822: 1X C AK B E BF820/BF822 Transistor (NPN) C B E SOT-23 top view C B E Schematic diagram Maximum Ratings(Ta=25℃ unless otherwise noted) Symbol VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage Ic Collector Current -Continuous Parameter BF820 BF822 BF820 BF822 Pc Collector Power Dissip.
