MPQ18811 - Single-Channel Gate Driver

Description

The MPQ18811 is an isolated, single-channel gate driver solution with up to 6A of source and up to 10A of sink peak current capacity.

The gate driver is designed to drive power switching devices with short propagation delay and pulsewidth distortion.

Features

  • the driver operates at high efficiency, high power density, and with robustness in a wide variety of automotive power.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MPQ1000 Quad Amplifier Transistor Motorola
MPQ1500 Quad Transistor Motorola
MPQ2221 NPN Transistor Motorola
MPQ2222 QUAD TRANSISTORS Central
MPQ2222 Quad Transistors Motorola Semiconductor

Other Datasheets by Monolithic Power Systems

Part Number Description
MPQ18913 0.3A High Frequency Transformer Driver
MPQ1918 Half-Bridge GaN/MOSFET Driver
MPQ1918GQE-AEC1 Half-Bridge GaN/MOSFET Driver
MPQ1923-AEC1 Half-Bridge Gate Driver
MPQ1925 Half-Bridge Gate Driver

Full PDF Text Transcription

Click to expand full text

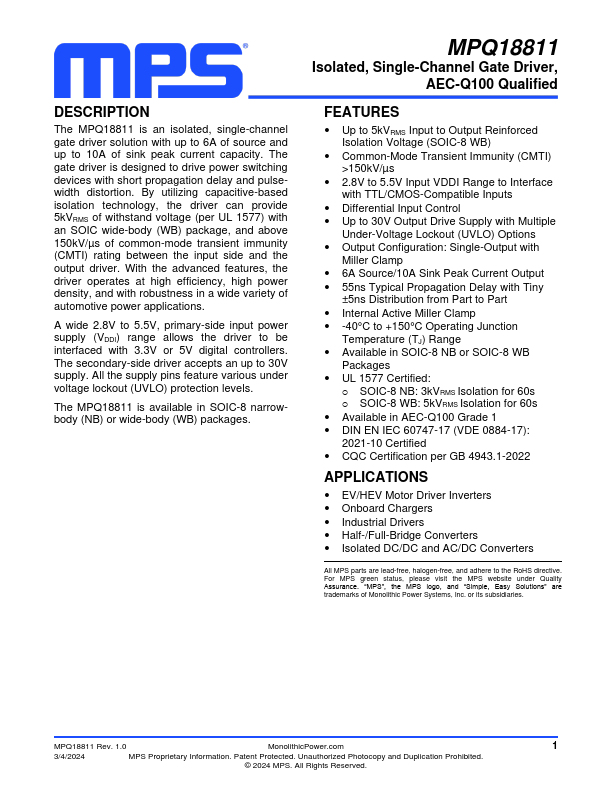

DESCRIPTION The MPQ18811 is an isolated, single-channel gate driver solution with up to 6A of source and up to 10A of sink peak current capacity. The gate driver is designed to drive power switching devices with short propagation delay and pulsewidth distortion. By utilizing capacitive-based isolation technology, the driver can provide 5kVRMS of withstand voltage (per UL 1577) with an SOIC wide-body (WB) package, and above 150kV/µs of common-mode transient immunity (CMTI) rating between the input side and the output driver. With the advanced features, the driver operates at high efficiency, high power density, and with robustness in a wide variety of automotive power applications. A wide 2.8V to 5.5V, primary-side input power supply (VDDI) range allows the driver to be interfaced with 3.
