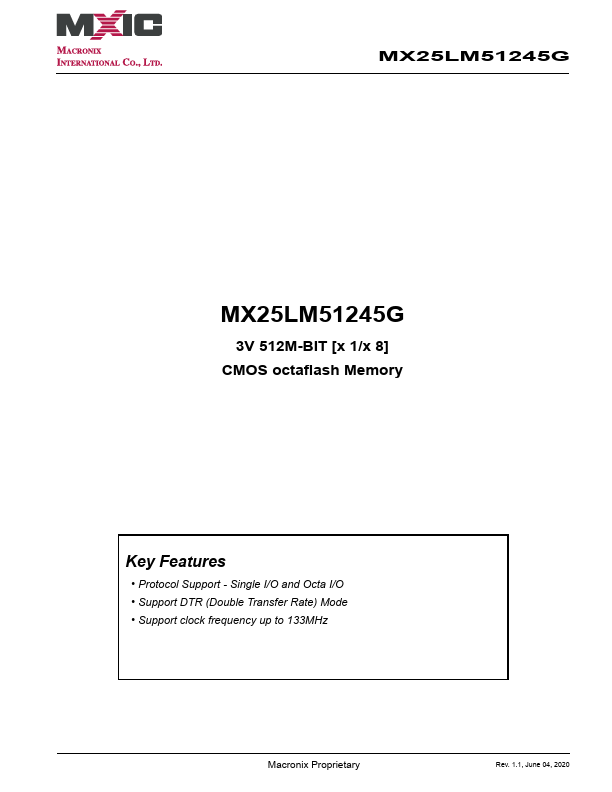

MX25LM51245G
MX25LM51245G is 3V 512M-BIT CMOS octaflash Memory manufactured by Macronix.
Features
- Protocol Support
- Single I/O and Octa I/O
- Support DTR (Double Transfer Rate) Mode
- Support clock frequency up to 133MHz
Macronix Proprietary
Rev. 1.1, June 04, 2020
3V 512M-BIT [x 1/x 8] CMOS octaflash Memory
1. FEATURES
GENERAL
- Supports Serial Peripheral Interface -- Mode 0
- Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- 512Mb: 536,870,912 x 1 bit structure or 67,108,864 x 8 bits (Octa I/O mode) structure
- Protocol Support
- Single I/O and Octa I/O
- Support DTR (Double Transfer Rate) Mode
- Fast frequency support
- Support clock frequency up to
- Single I/O mode: 133MHz
- Octa I/O mode: 133MHz
- Configurable dummy cycle number for OPI read operation
- Octa Peripheral Interface (OPI) available
- Equal Sectors with 4K byte each, or Equal Blocks with 64K byte each
- Any Block can be erased individually
- Programming :
- 256byte page buffer
- Octa Input/Output page program to enhance program performance
- Typical 100,000 erase/program cycles
- 20 years data retention
SOFTWARE FEATURES
- Input Data Format
- SPI: 1-byte mand code
- OPI: 2-byte mand code
- Advanced Security Features
- Block lock protection The BP0-BP3 and T/B status bits define the size of the area to be protected against program and erase instructions
- Advanced Sector Protection (Solid and Password Protect)
- Additional 8K bit security OTP
- Features unique identifier
- Factory locked identifiable, and customer...
