MMBT2907A - PNP General Purpose Amplifier

Key Features

  • Halogen Free. "Green" Device (Note 1).
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) PNP General Purpose Amplifier Maximum Ratings @ 25°C Unless Otherwise Specified.
  • Operating Junction Temperature Range: -55℃ to +150℃.
  • Storage Temperature Range: -55℃ to +150℃.
  • Thermal Resistance: 357℃/W Junction to Ambient.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBT2907A PNP General Purpose Amplifier GME
MMBT2907A PNP Transistor Cystech Electonics
MMBT2907A SWITCHING TRANSISTOR HOTTECH
MMBT2907A SMALL SIGNAL PNP TRANSISTOR STMicroelectronics
MMBT2907A 60V PNP Transistor Diodes Incorporated

Other Datasheets by Micro Commercial Components

Part Number Description
MMBT2222AT NPN General Purpose Amplifier
MMBT3904 NPN Transistor
MMBT4401 NPN General Purpose Amplifier
MMBT4403 PNP General Purpose Amplifier
MMBTA13 NPN Darlington Amplifier Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

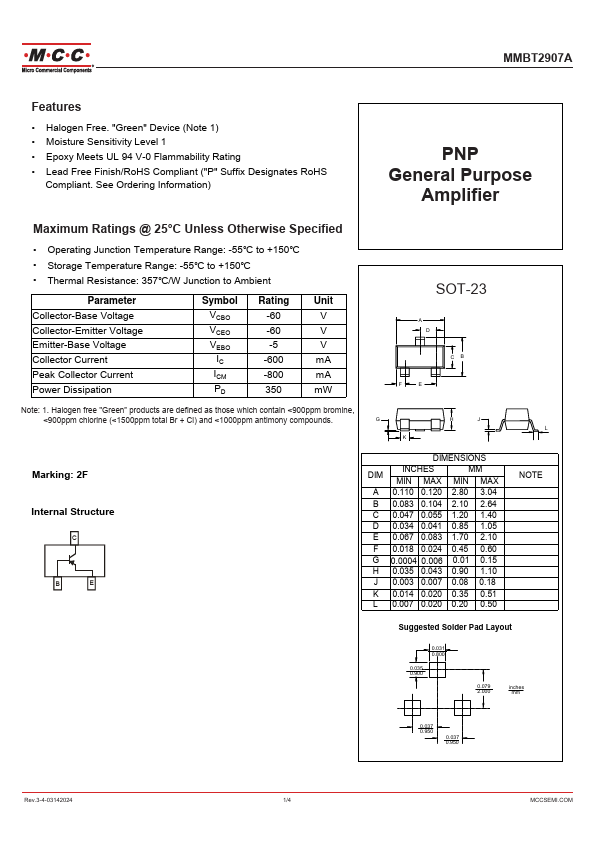

MMBT2907A Features • Halogen Free. "Green" Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) PNP General Purpose Amplifier Maximum Ratings @ 25°C Unless Otherwise Specified • Operating Junction Temperature Range: -55℃ to +150℃ • Storage Temperature Range: -55℃ to +150℃ • Thermal Resistance: 357℃/W Junction to Ambient Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Peak Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC ICM PD Rating -60 -60 -5 -600 -800 350 Unit V V V mA mA mW SOT-23 A D CB F E Note: 1.
