MMBT4401 - NPN General Purpose Amplifier

Key Features

  • Halogen Free. "Green" Device (Note 1).
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C Unless Otherwise Specified.
  • Operating Junction Temperature Range: -55℃ to +150℃.
  • Storage Temperature Range: -55℃ to +150℃.
  • Thermal Resistance: 357℃/W Junction to Ambient Parameter Collector-Base Voltag.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBT4401 NPN Silicon Epitaxial Planar Transistor GME
MMBT4401 NPN Transistor CITC
MMBT4401 Silicon NPN transistor BLUE ROCKET ELECTRONICS
MMBT4401 NPN Transistor GOOD-ARK
MMBT4401 SWITCHING TRANSISTOR HOTTECH

Other Datasheets by Micro Commercial Components

Part Number Description
MMBT4403 PNP General Purpose Amplifier
MMBT2222AT NPN General Purpose Amplifier
MMBT2907A PNP General Purpose Amplifier
MMBT3904 NPN Transistor
MMBTA13 NPN Darlington Amplifier Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

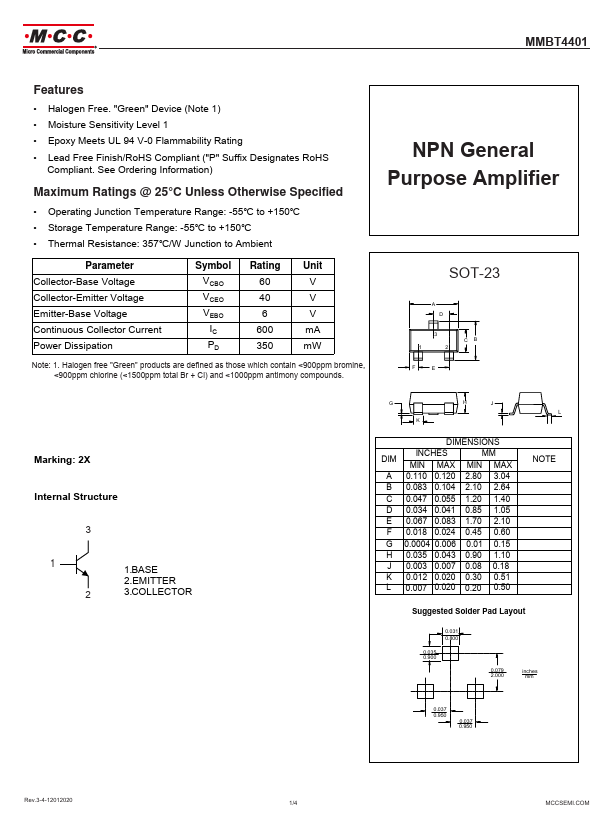

MMBT4401 Features • Halogen Free. "Green" Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C Unless Otherwise Specified • Operating Junction Temperature Range: -55℃ to +150℃ • Storage Temperature Range: -55℃ to +150℃ • Thermal Resistance: 357℃/W Junction to Ambient Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC PD Rating 60 40 6 600 350 Unit V V V mA mW Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.
