NSD2621A - Half-bridge GaN Driver

Description

7.1.

OVERVIEW10 7.2.

UNDER VOLTAGE LOCK OUT (UVLO)10 7.3.

Features

  • 700V Half-bridge Gate Drivers.
  • Integrated High-side and Low-side Output Regulators.
  • UVLO protection on low side and high side.
  • Source/Sink Current: 2A/ 4A.
  • Propagation Delay: 30ns TYP.
  • Short switching delay and mismatch.
  • Independent turn-on and turn-off adjustable.
  • Programmable Deadtime from 20ns to 100ns.
  • Allowable SW slew rate: 150V/ns.
  • Operating Temperature: -40~125°C.
  • RoHS & REACH Compliance.
  • Lead-free component, suitable for lead-.

📥 Download Datasheet

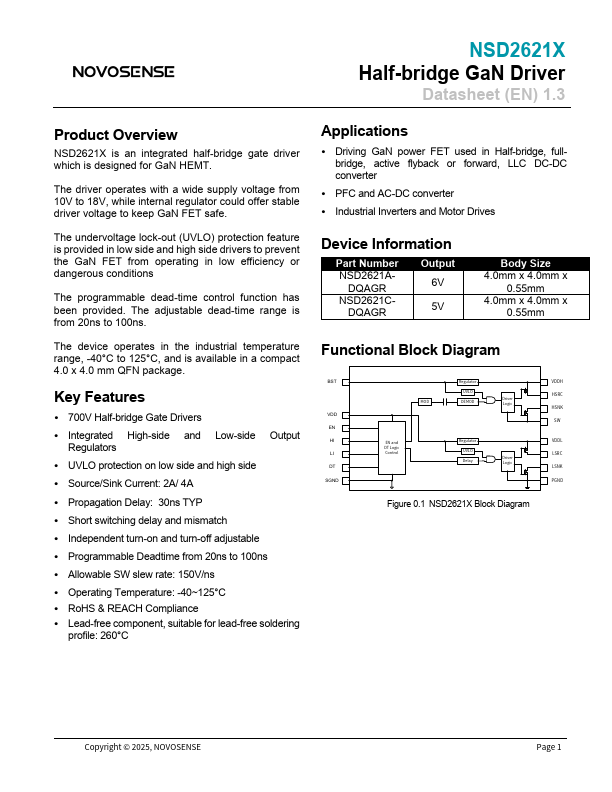

Datasheet preview – NSD2621A

Datasheet Details

Part number NSD2621A
Manufacturer NOVOSENSE
File Size 953.23 KB
Description Half-bridge GaN Driver
Datasheet download datasheet NSD2621A Datasheet

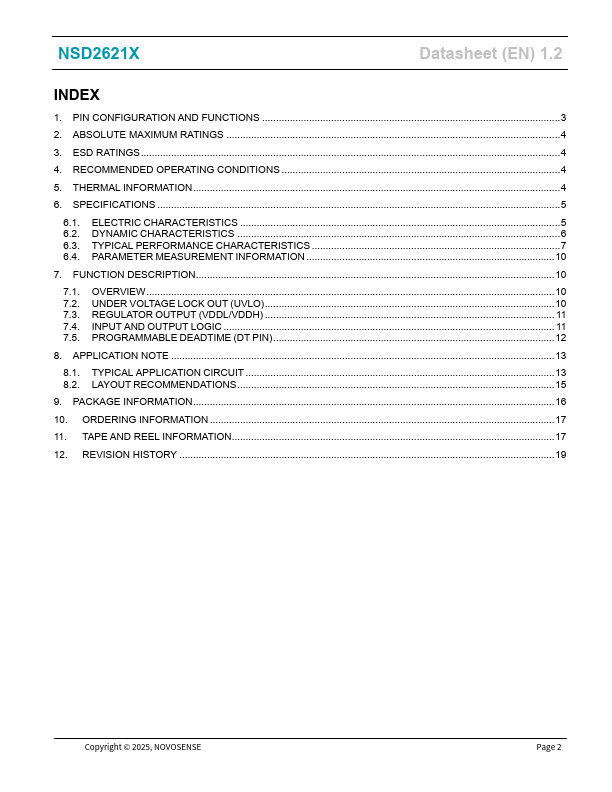

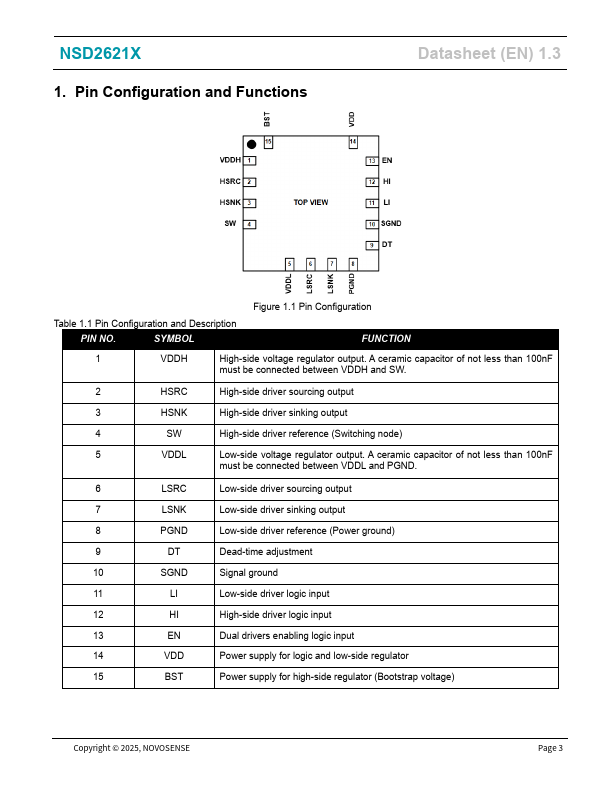

Additional preview pages of the NSD2621A datasheet.

📁 Similar Datasheet

  • NSD200 - Universal Control Device (NARI)
  • NSD-1202 - Dual Piezo Motor Driver IC (austriamicrosystems AG)
  • NSD-2101 - Piezo Motor Driver ASIC (austriamicrosystems AG)
  • NSD03A10 - DIODE (Nihon Inter Electronics)
  • NSD03A20 - DIODE (Nihon Inter Electronics)
  • nsd03a40 - Standard Recovery Diode (Nihon Inter Electronics)
  • NSD070AL - Switching Diode (ON Semiconductor)
  • NSD10-12D12 - DC-DC Converters (FranMar)
  • NSD10-12D15 - DC-DC Converters (FranMar)
  • NSD10-12D5 - DC-DC Converters (FranMar)
Other Datasheets by NOVOSENSE
  • NSD2621C - Half-bridge GaN Driver
  • NSD1025-Q1 - Low-Side Gate Driver
  • NSD1026V - High Speed 5A Dual-Channel Low-Side Gate Driver
  • NSD11430-Q1 - 1CH 40V Fully Protected Automotive Low-side Switch
  • NSD12409-Q1 - 2CH 40V Fully Protected Automotive Low-side Switch
  • NSD12430-Q1 - 2CH 40V Fully Protected Automotive Low-side Switch
  • NSD12430A-Q1 - 2CH 40V Fully Protected Automotive Low-side Switch
  • NSD1624-Q1 - Half Bridge Gate Driver

Full PDF Text Transcription

Click to expand full text
NSD2621X Half-bridge GaN Driver Datasheet (EN) 1.3 Product Overview NSD2621X is an integrated half-bridge gate driver which is designed for GaN HEMT. The driver operates with a wide supply voltage from 10V to 18V, while internal regulator could offer stable driver voltage to keep GaN FET safe. The undervoltage lock-out (UVLO) protection feature is provided in low side and high side drivers to prevent the GaN FET from operating in low efficiency or dangerous conditions The programmable dead-time control function has been provided. The adjustable dead-time range is from 20ns to 100ns. The device operates in the industrial temperature range, -40°C to 125°C, and is available in a compact 4.0 x 4.0 mm QFN package.
