NSI7258 - 1700-V 50mA Solid-State Relay

Description

8 7.1.

INSULATION AND SAFETY RELATED SPECIFICATIONS 8 7.2.

INSULATION CHARACTERISTICS 8 7.3.

Features

Normally open (1-Form-A) solid state relay.
Up to 5000Vrms Insulation voltage.
Breakdown voltage: 1700V.
OFF state leakage current:.

NOVOSENSE

📥 Download Datasheet

Datasheet Details

Part number	NSI7258
Manufacturer	NOVOSENSE
File Size	1.11 MB
Description	1700-V 50mA Solid-State Relay
Datasheet	NSI7258 Datasheet

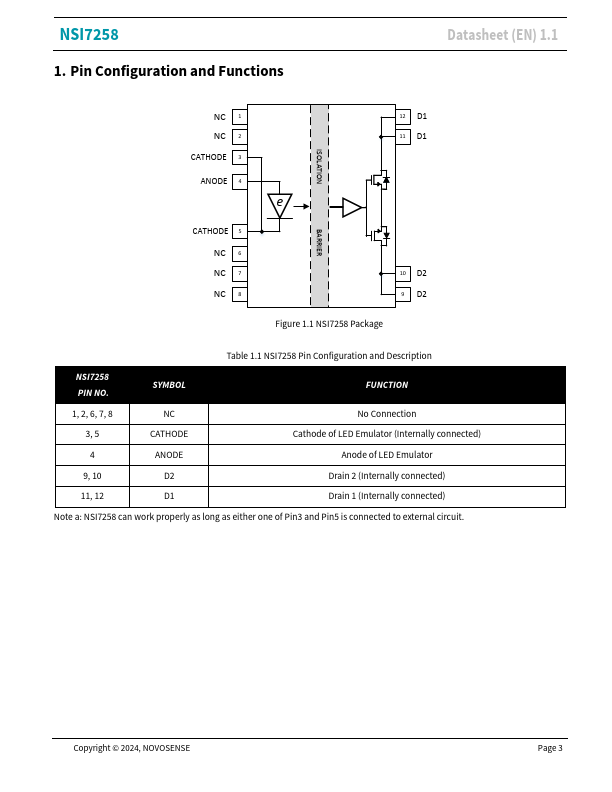

Additional preview pages of the NSI7258 datasheet.

📁 Similar Datasheet

NSI1000 - 1024 x 32 Resolution CMOS Image Sensor (Newsight Imaging)
NSI3000 - CMOS Image Sensor (Newsight Imaging)
NSI45015WT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
NSI45020AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
NSI45020JZ - Adjustable Constant Current Regulator & LED Driver (ON Semiconductor)
NSI45020T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
NSI45025AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
NSI45025AZ - Constant Current Regulator & LED Driver (ON Semiconductor)
NSI45025T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
NSI45025ZT1G - Constant Current Regulator & LED Driver (ON Semiconductor)

Other Datasheets by NOVOSENSE

NSI7210-DSPAR - High Reliability Single-Channel and Dual-Channel Opto-Emulator
NSI7210-DSWWAR - High Reliability Single-Channel and Dual-Channel Opto-Emulator
NSI7211-DSPAR - High Reliability Single-Channel and Dual-Channel Opto-Emulator
NSI7211-DSPR - High Reliability Single-Channel and Dual-Channel Opto-Emulator
NSI7211-DSWWAR - High Reliability Single-Channel and Dual-Channel Opto-Emulator
NSI7221-DSPR - High Reliability Single-Channel and Dual-Channel Opto-Emulator
NSI1042 - Isolated CAN Transceiver
NSI1042-Q1 - Isolated CAN Transceiver

Full PDF Text Transcription

Click to expand full text

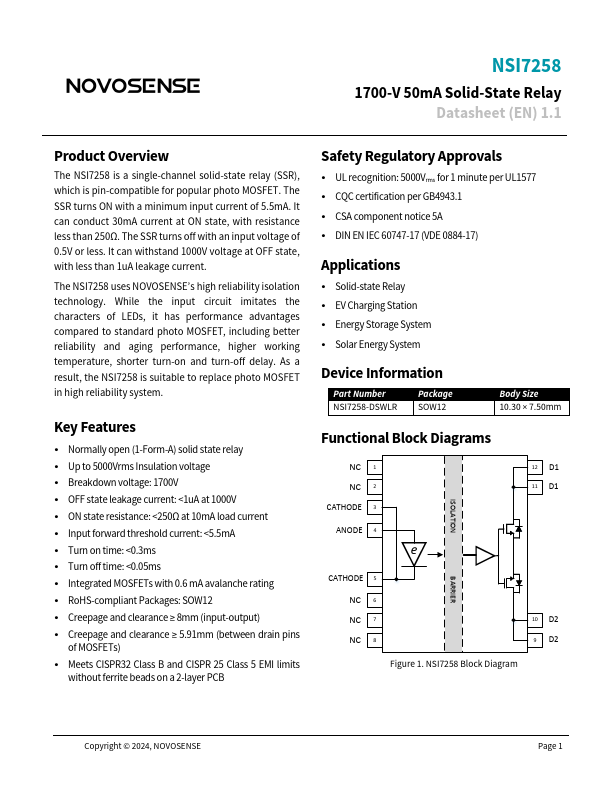

NSI7258 1700-V 50mA Solid-State Relay Datasheet (EN) 1.1 Product Overview The NSI7258 is a single-channel solid-state relay (SSR), which is pin-compatible for popular photo MOSFET. The SSR turns ON with a minimum input current of 5.5mA. It can conduct 30mA current at ON state, with resistance less than 250Ω. The SSR turns off with an input voltage of 0.5V or less. It can withstand 1000V voltage at OFF state, with less than 1uA leakage current. The NSI7258 uses NOVOSENSE’s high reliability isolation technology. While the input circuit imitates the characters of LEDs, it has performance advantages compared to standard photo MOSFET, including better reliability and aging performance, higher working temperature, shorter turn-on and turn-off delay.
