NXP Semiconductors BSS87
200V N-channel vertical D-MOS transistor
| Part No. | BSS87 |
|---|---|
| Datasheet | BSS87 Download |
| Manufacturer |  NXP Semiconductors |
| Description | 200V N-channel vertical D-MOS transistor |
| Buy | Stock & Price |
FEATURES AND BENEFITS
● Direct interface to Complementary (C-MOS) transistor and Transistor-Transistor Logic (TTL) devices.● Very fast switching
● No secondary breakdown 3.
APPLICATIONS
● Relay driver● High-speed line driver
● Load-side loadswitch

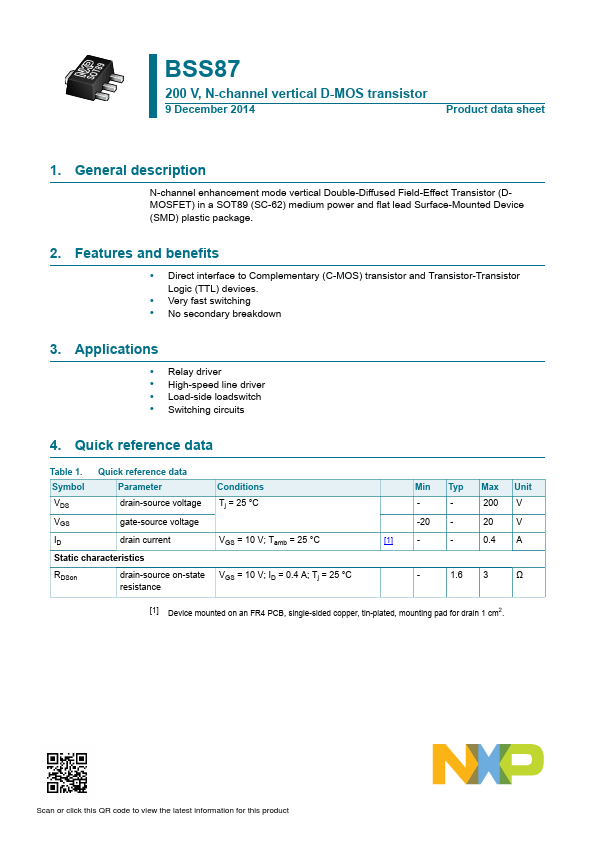

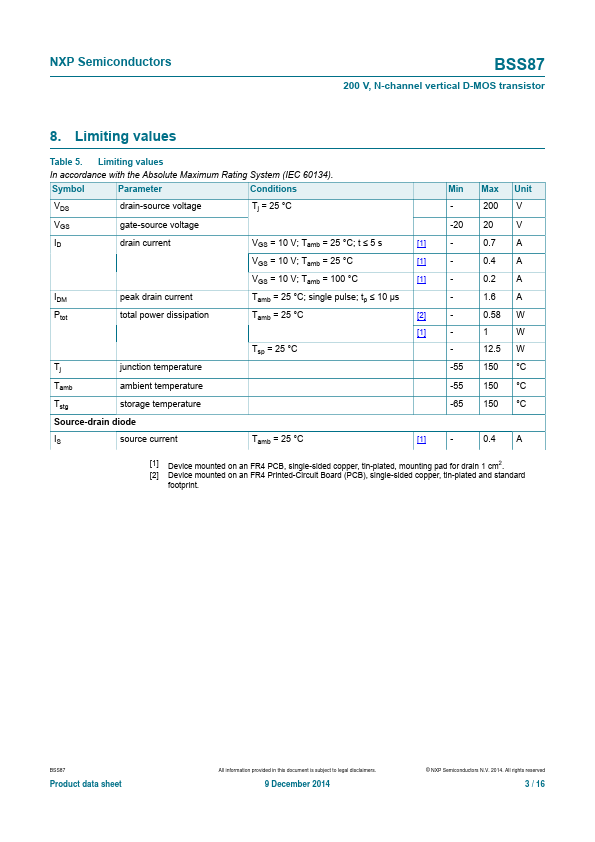

● Switching circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter VDS drain-source voltage VGS gate-source voltage ID drain current Static characteristics RDSon drain-source on-state resistance Conditions Tj = 25 °C VGS = 10 V; Tamb = 25 °C VGS = 10 V; ID = 0.4 A; Tj = 25 °C Min Typ Max Unit - - 200 V -20 - 20 V [1] - - 0.4 A - 1.6 3 Ω [1] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for drain 1 cm2. Scan or click this QR code to view the latest information for this product NXP Semiconductors BSS87 200 V, N-channel vertical D-MOS transistor 5. Pinning information Table 2. Pinning information Pin Symbol

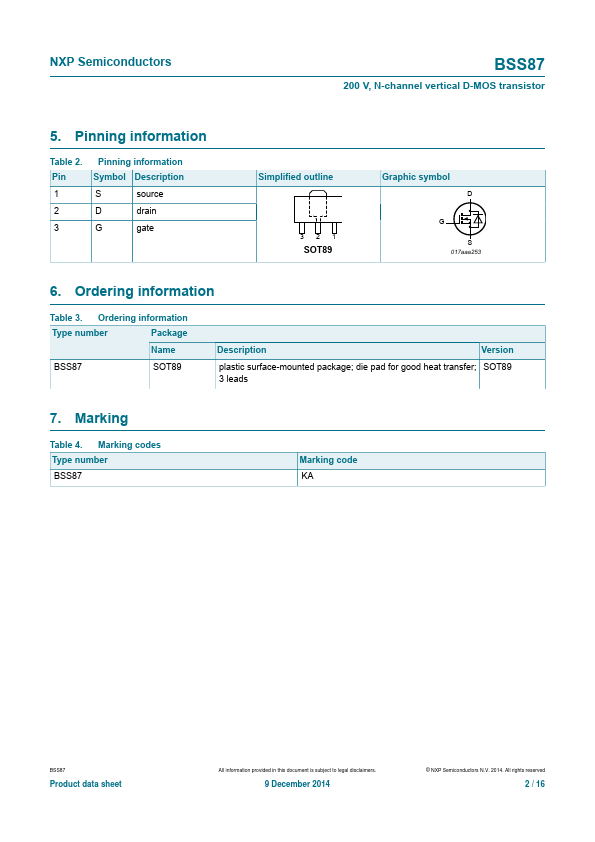

DESCRIPTION
