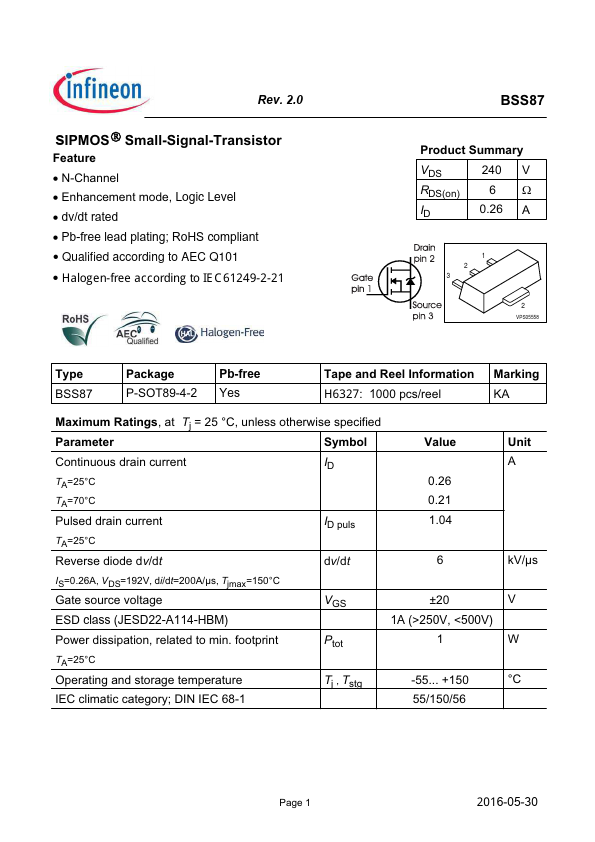

Rev. 2.0
SIPMOSÒ Small-Signal-Transistor
Feature · N-Channel · Enhancement mode, Logic Level · dv/dt rated · Pb-free lead plating; RoHS compliant • Qualified according to AEC Q101 • Halogenfree according to IE C 61249221
BSS87
Product Summary
VDS
240 V
RDS(on)
6W
ID
0.26 A
1 2 3
2
VPS05558
Type BSS87
Package P-SOT89-4-2
Pb-free Yes
Tape and Reel Information Marking
H6327: 1000 pcs/reel
KA
Maximum Ratings, at Tj = 25 °C, unless otherwise specified
Parameter
Symbol
Value
Continuous drain current
TA=25°C TA=70°C
Pulsed drain current
TA=25°C
Reverse diode dv/dt
ID
ID puls dv/dt
0.26 0.21 1.04
6
IS=0.26A, VDS=192V, di/dt=200A/µs, Tjmax=150°C
Gate source voltage ESD class (JESD22-A114-HBM)
VGS
±20 1A (>250V, <500V)
Power dissipation, related to min.
