BSS87 - N-channel enhancement mode vertical D-MOS transistor

General Description

1 source 2 drain 3 gate APPLICATIONS Line current interruptor in telephone sets

drivers.

DESCRIPTION N-channel enhancement mode vertical D-MOS transistor in a SOT89 package.

Key Features

  • Direct interface to C-MOS, TTL, etc.
  • High-speed switching.
  • No secondary breakdown.
  • Low RDSon.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BSS87 200V N-channel vertical D-MOS transistor NXP
BSS87 200V N-Channel MOSFET VBsemi
BSS87 Small-Signal Transistor Siemens
BSS87 Small-Signal-Transistor Infineon
BSS87 N-Channel MOSFET Kexin

Other Datasheets by Philips Semiconductors (now NXP Semiconductors)

Part Number Description
BSS60 PNP Transistoor
BSS61 PNP Transistoor
BSS62 PNP Transistoor
BSS91 N Channel Enhancement Mode Vertical D-MOS Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

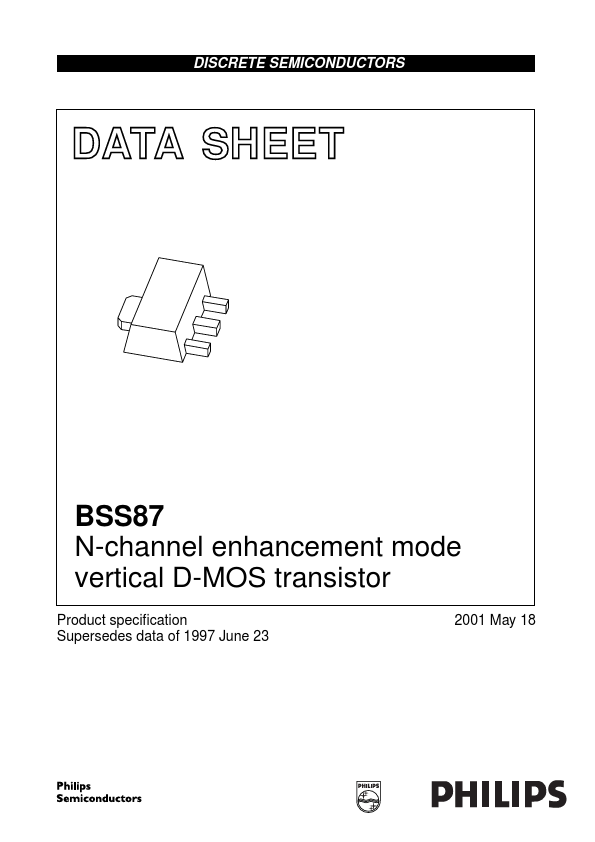

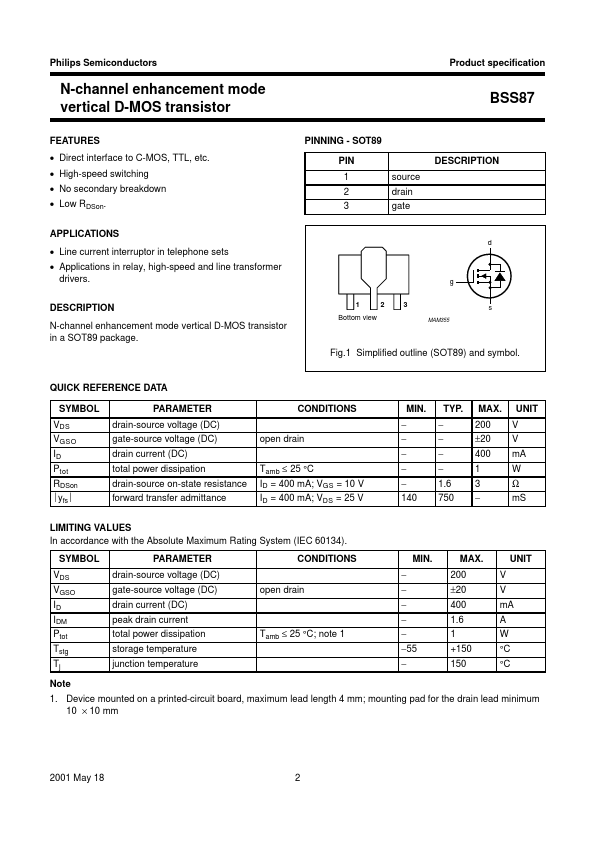

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D109 BSS87 N-channel enhancement mode vertical D-MOS transistor Product specification Supersedes data of 1997 June 23 2001 May 18 Philips Semiconductors N-channel enhancement mode vertical D-MOS transistor Product specification BSS87 FEATURES • Direct interface to C-MOS, TTL, etc. • High-speed switching • No secondary breakdown • Low RDSon. PINNING - SOT89 PIN DESCRIPTION 1 source 2 drain 3 gate APPLICATIONS • Line current interruptor in telephone sets • Applications in relay, high-speed and line transformer drivers. DESCRIPTION N-channel enhancement mode vertical D-MOS transistor in a SOT89 package. handbook, halfpage d g 1 2 3 s Bottom view MAM355 Fig.1 Simplified outline (SOT89) and symbol.
