VBsemi Electronics BSS87
200V N-Channel MOSFET
| Part No. | BSS87 |
|---|---|
| Datasheet | BSS87 Download |
| Manufacturer | VBsemi Electronics |
| Description | 200V N-Channel MOSFET |
| Buy | Stock & Price |

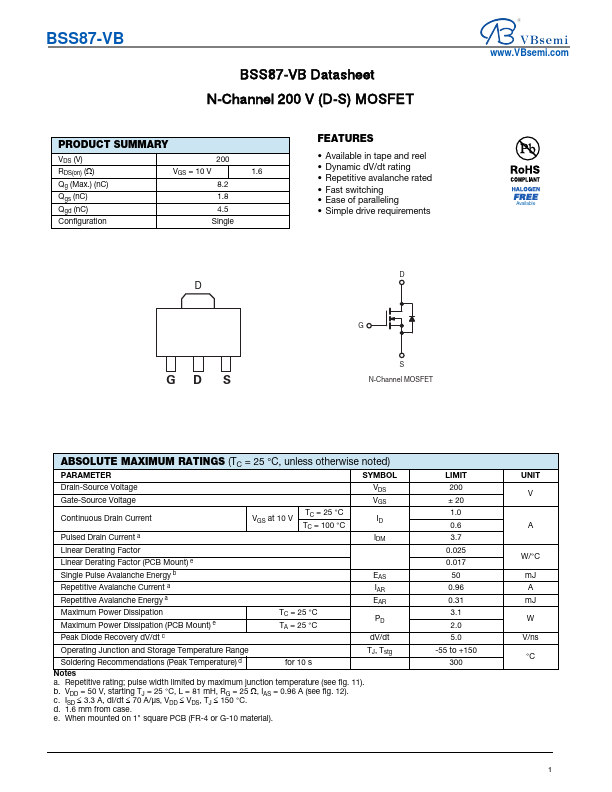

FEATURES
● Available in tape and reel● Dynamic dV/dt rating
● Repetitive avalanche rated
● Fast switching
● Ease of paralleling
● Simple drive requirements D GD S D G S N-Channel MOSFET Available
ABSOLUTE MAXIMUM RATINGS
(TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current a Linear Derating Factor VDS VGS VGS at 10 V TC = 25 °C TC = 100 °C ID IDM Linear Derating Factor (PCB Mount) e Single Pulse Avalanche Energy b Repetitive Avalanche Current a Repetitive Avalanche Energy a Maximum Power Dissipation Maximum Power Dissipation (PCB Mount) e Peak Diode Recovery dV/dt c TC = 25 °C TA = 25 °C EAS IAR EAR PD dV/dt Operating Junction and Storage Temperature Range Soldering Recommendations (Peak Temperature) d for 10 s TJ, Tstg Notes a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11). b. VDD = 50 V, starting TJ = 25 °C, L = 81 mH, RG = 25 , IAS = 0.96 A (see fig. 12). c.
