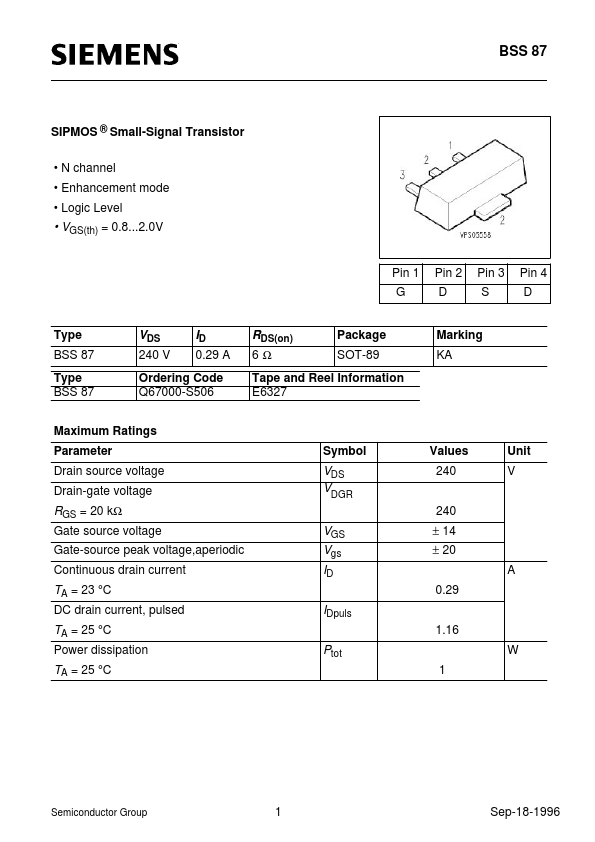

BSS 87
SIPMOS ® Small-Signal Transistor
• N channel • Enhancement mode • Logic Level • VGS(th) = 0.8...2.0V
Pin 1 Pin 2 Pin 3 Pin 4
G
D
S
D
Type BSS 87
Type BSS 87
VDS 240 V
ID 0.29 A
Ordering Code Q67000-S506
RDS(on) 6Ω
Package SOT-89
Tape and Reel Information E6327
Marking KA
Maximum Ratings Parameter Drain source voltage Drain-gate voltage RGS = 20 kΩ Gate source voltage Gate-source peak voltage,aperiodic Continuous drain current TA = 23 °C DC drain current, pulsed TA = 25 °C Power dissipation TA = 25 °C
Symbol VDS VDGR
VGS Vgs ID
IDpuls
Ptot
Values
Unit
240
V
240 ± 14 ± 20
A 0.29
1.
