2SC5658M3T5G - NPN Silicon General Purpose Amplifier Transistor

onsemi

Datasheet Details

Part number	2SC5658M3T5G
Manufacturer	onsemi
File Size	93.77 KB
Description	NPN Silicon General Purpose Amplifier Transistor
Datasheet	2SC5658M3T5G Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SC5658	General purpose small signal amplifier	ROHM
2SC5658	NPN Transistor	SeCoS
2SC5658-C	NPN Plastic Encapsulated Transistor	SeCoS
2SC5658-HF	NPN Transistor	Comchip
2SC5658-Q	NPN Transistor	Taiwan Semiconductor

Other Datasheets by onsemi

Part Number	Description
2SC5658RM3T5G	NPN Silicon General Purpose Amplifier Transistor
2SC5646A	RF Transistor
2SC5200	NPN Transistor
2SC5226A	RF Transistor
2SC5227A	RF Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

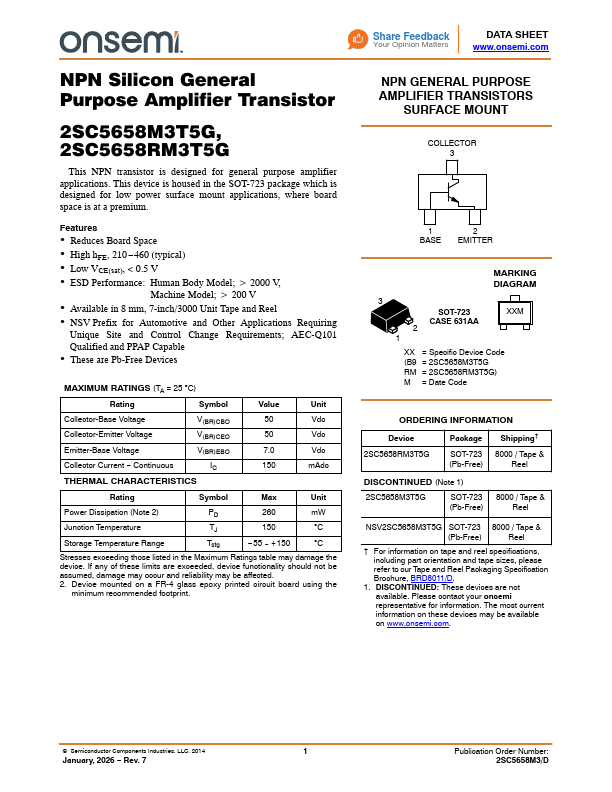

www.DataSheet4U.com 2SC5658M3T5G NPN Silicon General Purpose Amplifier Transistor This NPN transistor is designed for general purpose amplifier applications. This device is housed in the SOT-723 package which is designed for low power surface mount applications, where board space is at a premium. • Reduces Board Space • High hFE, 210 −460 (typical) • Low VCE(sat), < 0.5 V • ESD Performance: Human Body Model; u 2000 V, Machine Model; u 200 V • Available in 8 mm, 7-inch/3000 Unit Tape and Reel • This is a Pb−Free Device http://onsemi.com NPN GENERAL PURPOSE AMPLIFIER TRANSISTORS SURFACE MOUNT COLLECTOR 3 MAXIMUM RATINGS (TA = 25°C) Rating Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current − Continuous Symbol V(BR)CBO V(BR)CEO V(BR)EBO IC Value 50 50 5.
