MJD32 - (MJD31 / MJD32) Complementary Power Transistors

onsemi

Download the MJD32 datasheet PDF. This datasheet also covers the MJD31 variant, as both devices belong to the same (mjd31 / mjd32) complementary power transistors family and are provided as variant models within a single manufacturer datasheet.

Key Features

Lead Formed for Surface Mount.

📥 Download Datasheet

MJD32 (mjd31 / mjd32) complementary power transistors by onsemi - Datasheet Preview — Note: The manufacturer provides a single datasheet file (MJD31_ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	MJD32
Manufacturer	onsemi
File Size	95.49 KB
Description	(MJD31 / MJD32) Complementary Power Transistors
Datasheet	MJD32 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MJD32	Complementary Power Transistors	Kexin
MJD32	COMPLEMENTARY PLASTIC POWER TRANSISTORS	CDIL
MJD32	General Purpose Amplifier	Fairchild
MJD32	SILICON POWER TRANSISTORS	Motorola
MJD32B	COMPLEMENTARY SILICON POWER TRANSISTORS	ST Microelectronics

Other Datasheets by onsemi

Part Number	Description
MJD31	(MJD31 / MJD32) Complementary Power Transistors
MJD340	High Voltage Power Transistors
MJD350	High Voltage Power Transistors
MJD112	Complementary Darlington Power Transistor
MJD117	Complementary Darlington Power Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

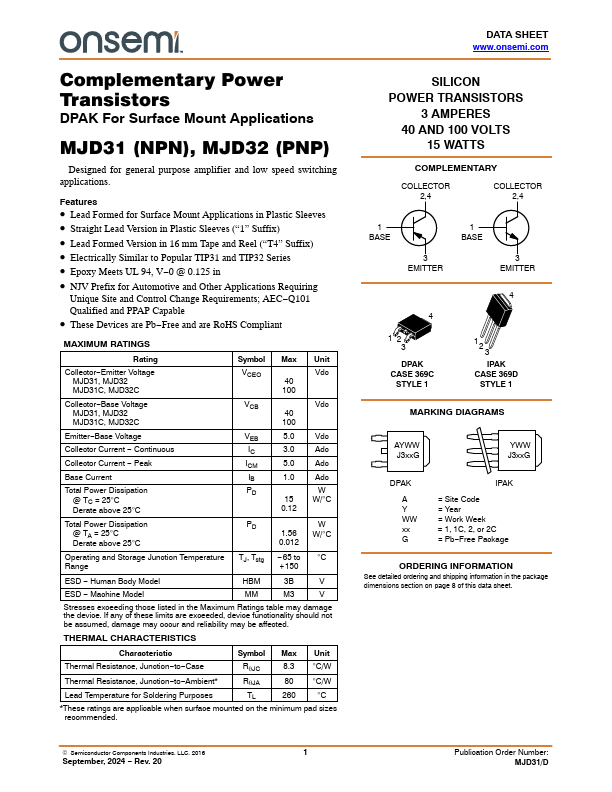

MJD31 (NPN), MJD32 (PNP) Complementary Power Transistors DPAK For Surface Mount Applications Designed for general purpose amplifier and low speed switching applications. Features • Lead Formed for Surface Mount Applications in Plastic Sleeves • Straight Lead Version in Plastic Sleeves (“1” Suffix) • Lead Formed Version in 16 mm Tape and Reel (“T4” Suffix) • Electrically Similar to Popular TIP31 and TIP32 Series • Epoxy Meets UL 94, V−0 @ 0.125 in • NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free and are RoHS Compliant www.onsemi.
