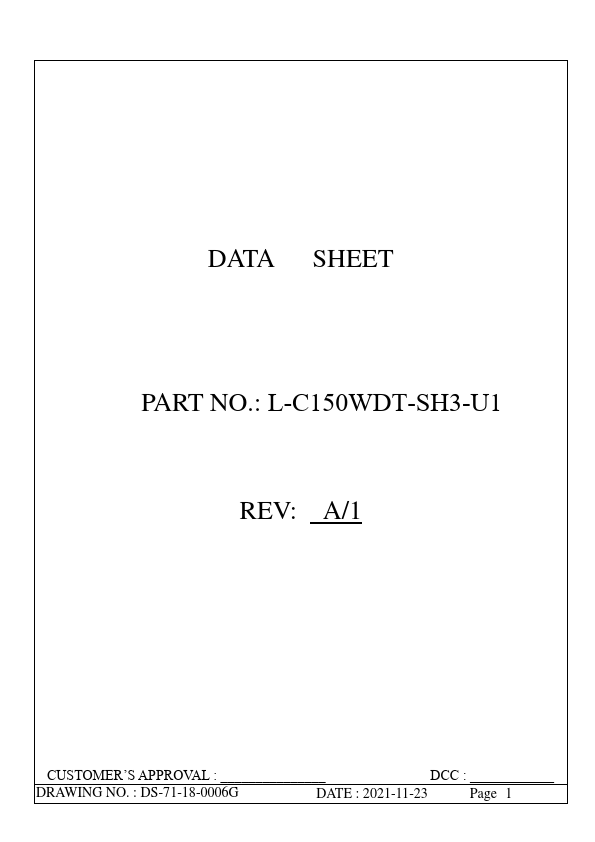

DATA SHEET PART NO.: L-C150WDT-SH3-U1
REV: A/1
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-71-18-0006G
DATE : 2021-11-23
Page 1
SURFACE MOUNT DEVICE LED
Part No. : L-C150WDT-SH3-U1
Features
Wide view angle, White color SMD chip LED . Compatible with automatic Pick & Place equipment. Compatible with Reflow soldering and Wave soldering processes. EIA STD package.(ANSI/EIA-481-B-2001) I.C. compatible, low current application Pb free product and acceptable lead-free process!. Meet RoHS Green Product. Moisture sensitivity level: 3 .
● Application
LCD back light Switch back lights Illuminations.

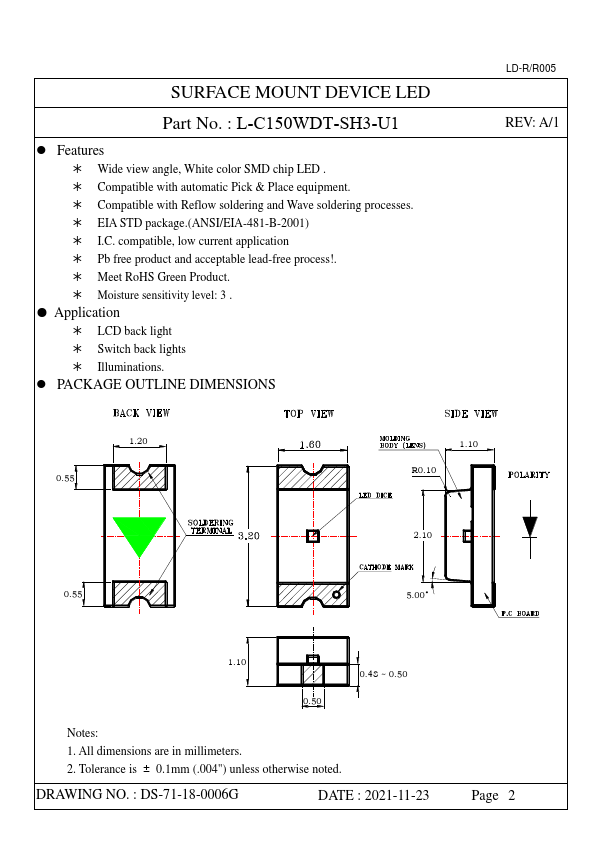

PACKAGE OUTLINE DIMENSIONS
LD-R/R005
REV: A/1
0.55
1.20
R0.10
1.10
2.10
0.55
5.00°
1.10
0.50
0.48 ~ 0.50
Notes: 1.
L-C150WDT-SH3-U1 Datasheet
