Puya Semiconductor P24C512B
The P24C512B is I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 512 Kbits (64 Kbytes), which is organized in 128 bytes per page.| Part No. | P24C512B |
|---|---|
| Datasheet | P24C512B Download |
| Manufacturer |  Puya Semiconductor |
| Description | I2C-Compatible Serial E2PROM |
| Buy | Stock & Price |
GENERAL DESCRIPTION
FEATURES
● Single Supply Voltage and High Speed Mode● Minimum operating voltage down to 1.7 V
● 400 kHz/1 MHz clock from 1.7 V to 5.5 V
● Low power CMOS technology
● Read current 0.2 mA (400 kHz, typical)
● Write current 1.0 mA (400 kHz, typical)
● Schmitt Trigger, Filtered Inputs for Noise Suppression
● Sequential & Random Read
FEATURES
● 128 bytes Page Write Modes, Partial Page Writes Allowed● Write protect of the whole memory array
● Additional Write Lockable Page
● Self-timed Write Cycle (5 ms maximum)
● High Reliability
● Endurance: 1 Million Write Cycles
● Data Retention: 100 Years
● HBM: 6 kV
● Latch up Capability: +/- 200 mA(25 C)

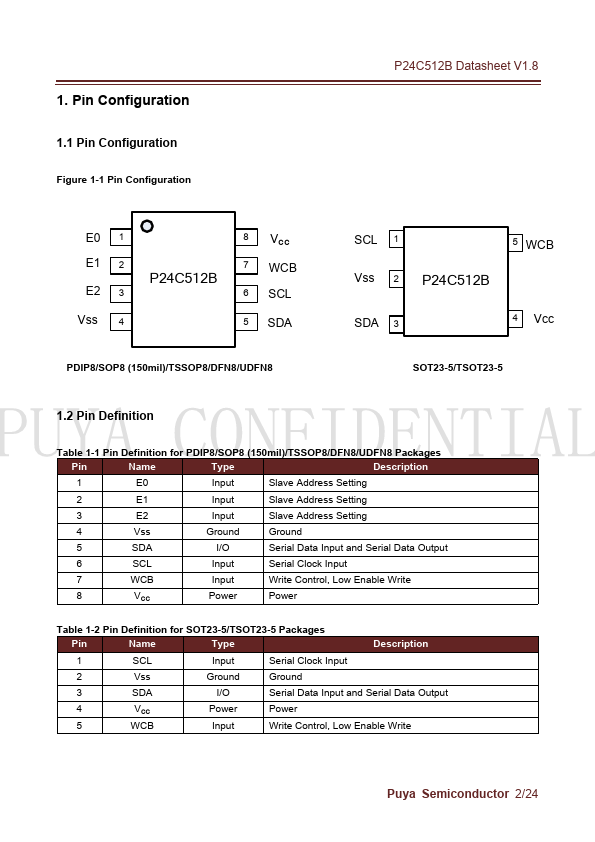

● Package: PDIP8,SOP8(150mil),TSSOP8,DFN8,UDFN8, SOT23-5,TSOT23-5 1/24 1. Pin Configuration 1.1 Pin Configuration Figure 1-1 Pin Configuration P24C512B Datasheet V1.8 E0 1 E1 2 E2 3 Vss 4 P24C512B 8 VCC 7 WCB 6 SCL 5 SDA PDIP8/SOP8 (150mil)/TSSOP8/DFN8/UDFN8 SCL 1 5 WCB Vss 2 P24C512B SDA 3 4 Vcc SOT23-5/TSOT23-5 1.2 Pin Definiti...
