2SD2654 - Transistor

Product Overview

Rohm

Part number	2SD2654
Manufacturer	ROHM
File Size	87.50 KB
Description	Transistor
Datasheet	2SD2654 Datasheet

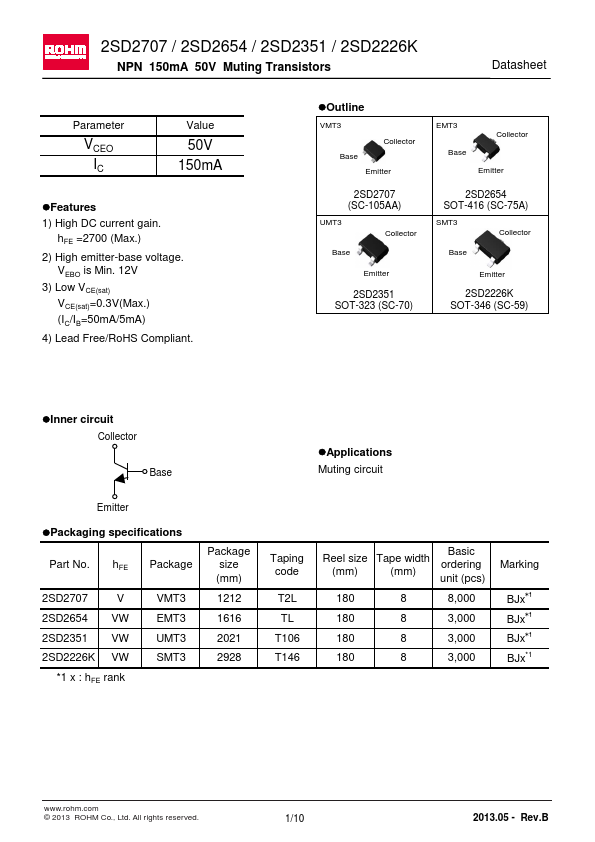

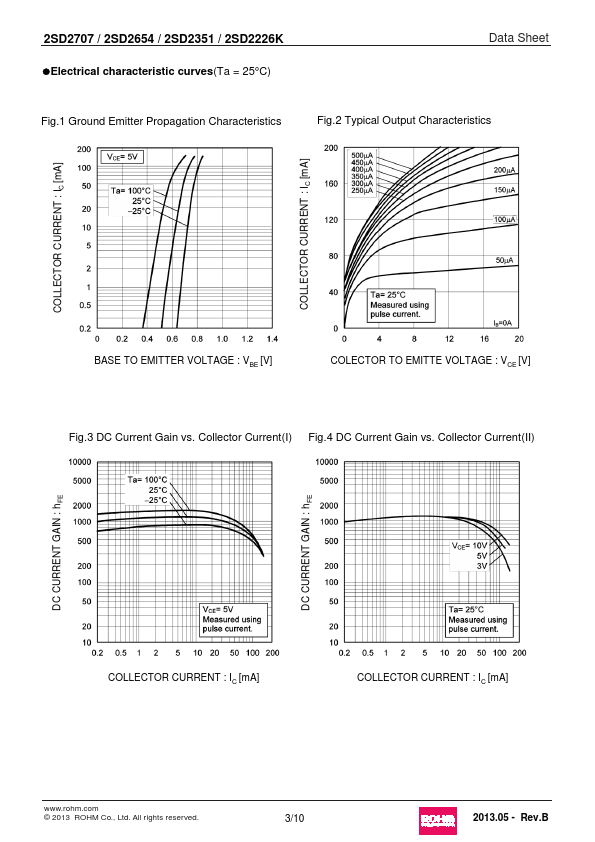

Additional preview pages of the 2SD2654 datasheet.

1) High DC current gain. 2) High emitter-base voltage. (VCBO=12V) 3) Low saturation voltage. (Typ. VCE(sat)=0.3V at IC/IB=50mA/5mA) zExternal dimensions (Unit : mm) 2SD2707 0.2 1.2 0.32 1.2 0.8 (2) (3) (1) 0.2 0.4 0.4 0.8 0.5 0.22 zAbsolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation 2SD2654, 2SD2707 2SD2351, 2SD2226K 2SD2227S Tj Tstg PC Symbol VCBO VCEO VEBO IC Limits 60 50 12 0.15.
