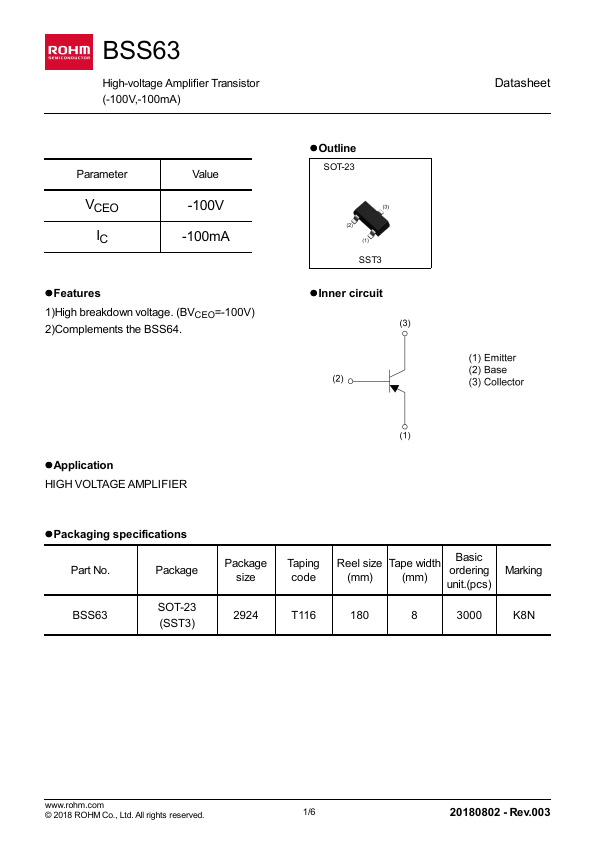

BSS63
High-voltage Amplifier Transistor (-100V,-100m A)
Parameter
VCEO IC
Value
-100V -100m A l Features 1)High breakdown voltage. (BVCEO=-100V) 2)plements the BSS64. l Outline
SOT-23
SST3
l Inner circuit
Datasheet l Application HIGH VOLTAGE AMPLIFIER l Packaging specifications
Part No.
Package
SOT-23 (SST3)
Package size
Taping code
Reel size (mm)
Tape width (mm)
Basic ordering unit.(pcs)
Marking
T116
3000 K8N
.rohm.
© 2018 ROHM Co., Ltd. All rights reserved.
1/6

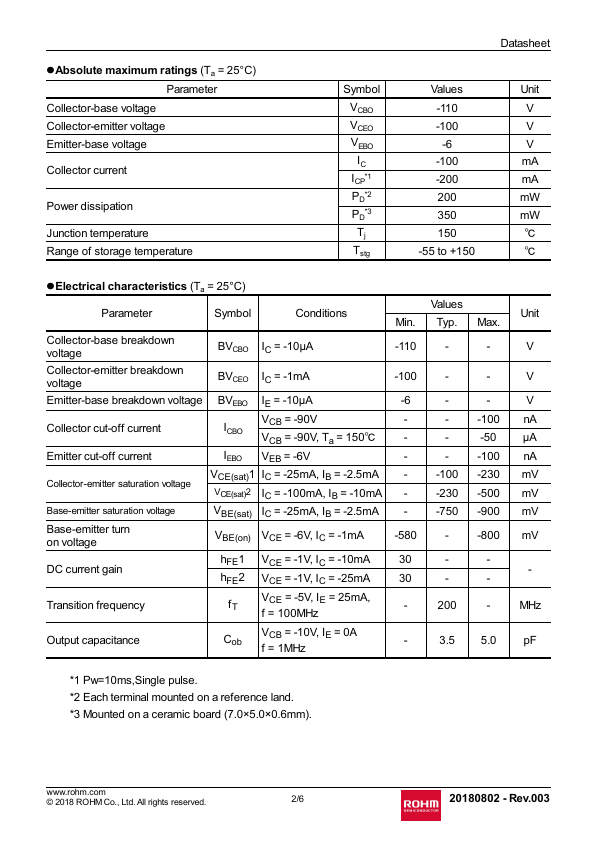

- Rev.003 l Absolute maximum ratings (Ta = 25°C) Parameter
Collector-base voltage Collector-emitter voltage Emitter-base voltage
Collector current
Power dissipation
Junction temperature Range of storage temperature
Datasheet
Symbol...
