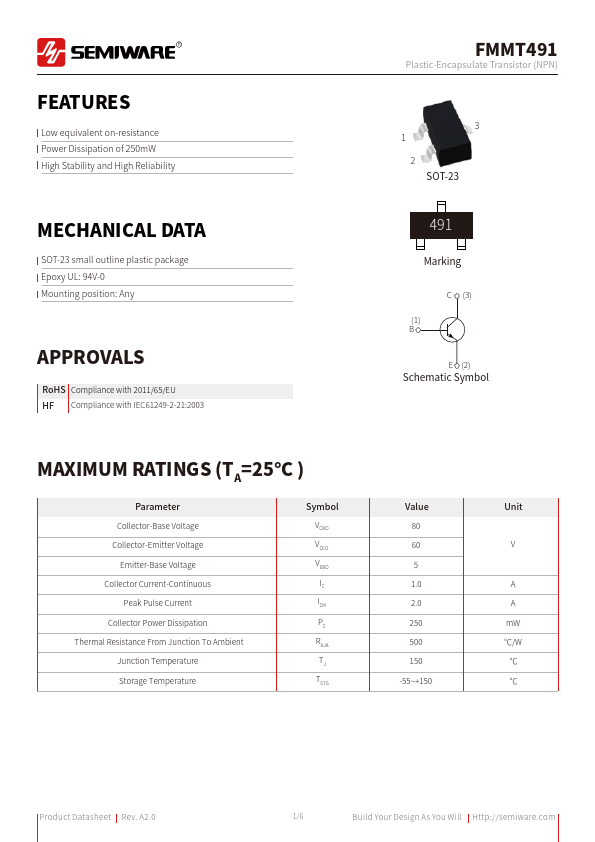

FMMT491
FEATURES
Low equivalent on-resistance Power Dissipation of 250m W High Stability and High Reliability
MECHANICAL DATA
SOT-23 small outline plastic package Epoxy UL: 94V-0 Mounting position: Any
APPROVALS
Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
MAXIMUM RATINGS (TA=25°C )
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current-Continuous
Peak Pulse Current Collector Power Dissipation Thermal Resistance From Junction To Ambient
Junction Temperature Storage Temperature
Symbol VCBO VCEO VEBO IC ICM PC RθJA TJ TSTG
Plastic-Encapsulate Transistor (NPN)
3 1
2 SOT-23
Marking
C (3) (1) B
E (2)
Schematic Symbol
Value 80 60 5 1.0 2.0 250 500 150
-55~+150
Unit
A A m W ℃/W ℃ ℃
Product Datasheet Rev. A2.0
1/6
Build Your Design As You Will Http://semiware.
Plastic-Encapsulate Transistor (NPN)

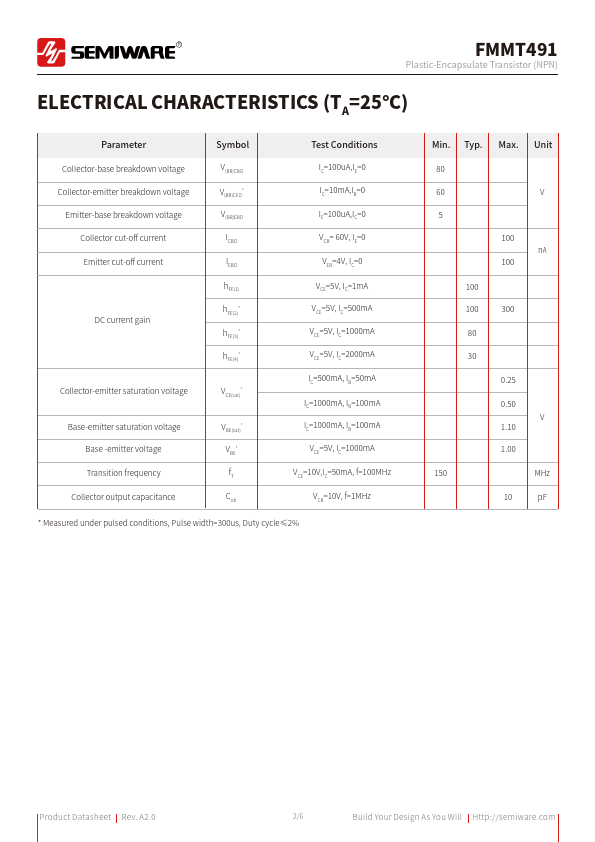

ELECTRICAL CHARACTERISTICS (TA=25°C)
Parameter
Symbol
Test Conditions
Collector-base breakdown voltage...
