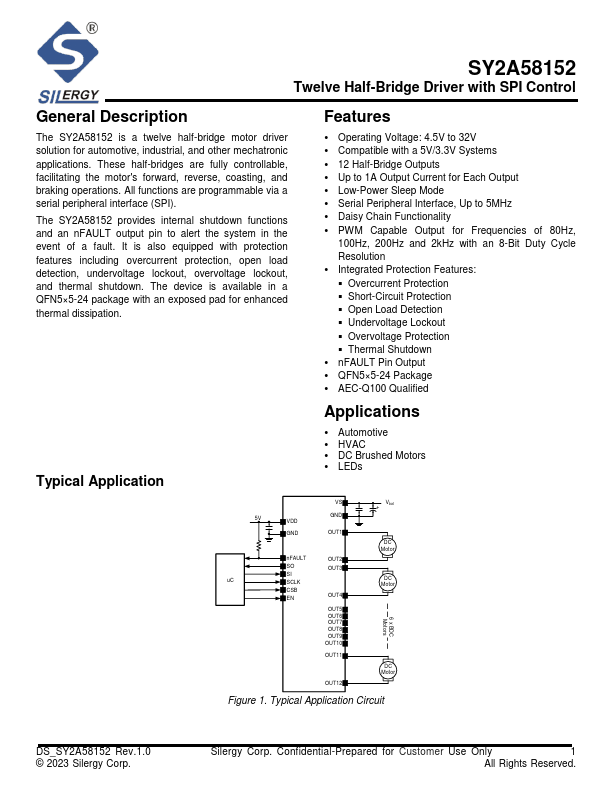

SY2A58152
SY2A58152 is Twelve Half-Bridge Driver manufactured by Silergy.
Twelve Half-Bridge Driver with SPI Control
General Description
The SY2A58152 is a twelve half-bridge motor driver solution for automotive, industrial, and other mechatronic applications. These half-bridges are fully controllable, facilitating the motor's forward, reverse, coasting, and braking operations. All functions are programmable via a serial peripheral interface (SPI). The SY2A58152 provides internal shutdown functions and an n FAULT output pin to alert the system in the event of a fault. It is also equipped with protection Features including overcurrent protection, open load detection, undervoltage lockout, overvoltage lockout, and thermal shutdown. The device is available in a QFN5×5-24 package with an exposed pad for enhanced thermal dissipation.
Typical Application
Features
- Operating Voltage: 4.5V to 32V
- patible with a 5V/3.3V Systems
- 12 Half-Bridge Outputs
- Up to 1A Output Current for Each Output
- Low-Power Sleep Mode
- Serial Peripheral Interface, Up to 5MHz
- Daisy Chain Functionality
- PWM Capable Output for Frequencies of 80Hz,
100Hz, 200Hz and 2k Hz with an 8-Bit Duty Cycle Resolution
- Integrated Protection Features
:
- Overcurrent Protection
- Short-Circuit Protection
- Open Load Detection
- Undervoltage Lockout
- Overvoltage Protection
- Thermal Shutdown
- n FAULT Pin Output
- QFN5×5-24 Package
- AEC-Q100 Qualified
Applications
- Automotive
- HVAC
- DC Brushed Motors
-...
