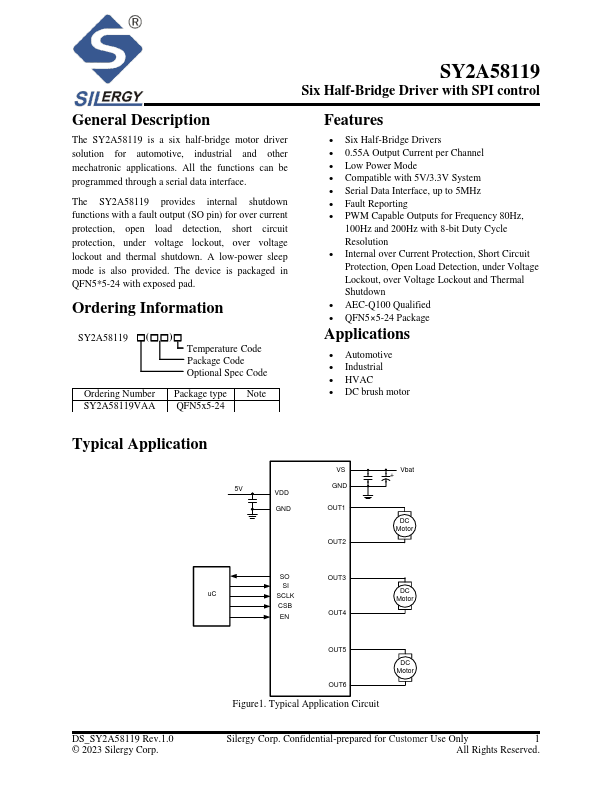

Six Half-Bridge Driver with SPI control General Description The SY2A58119 is a six half-bridge motor driver solution for automotive, industrial and other mechatronic applications. All the functions can be programmed through a serial data interface. The SY2A58119 provides internal shutdown functions with a fault output (SO pin) for over current protection, open load detection, short circuit protection, under voltage lockout, over voltage lockout and thermal shutdown. A low-power sleep mode is also provided. The device is packaged in QFN5- 5-24 with exposed pad. Ordering Information - (- - )- Temperature Code Package Code Optional Spec Code Ordering Number Package type Note SY2A58119VAA QFN5x5-24 Features - Six Half-Bridge Drivers - 0.55A Output Current per Channel - Low Power Mode - patible with 5V/3.3V System - Serial Data Interface, up to 5MHz - Fault Reporting - PWM Capable Outputs for Frequency 80Hz, 100Hz and 200Hz with 8-bit Duty Cycle Resolution - Internal over Current Protection, Short Circuit Protection, Open Load Detection, under Voltage Lockout, over Voltage Lockout and Thermal Shutdown - AEC-Q100 Qualified - QFN5×5-24 Package Applications - Automotive - Industrial - HVAC - DC brush motor Typical Application 5V VS GND OUT1 OUT2 Vbat...
