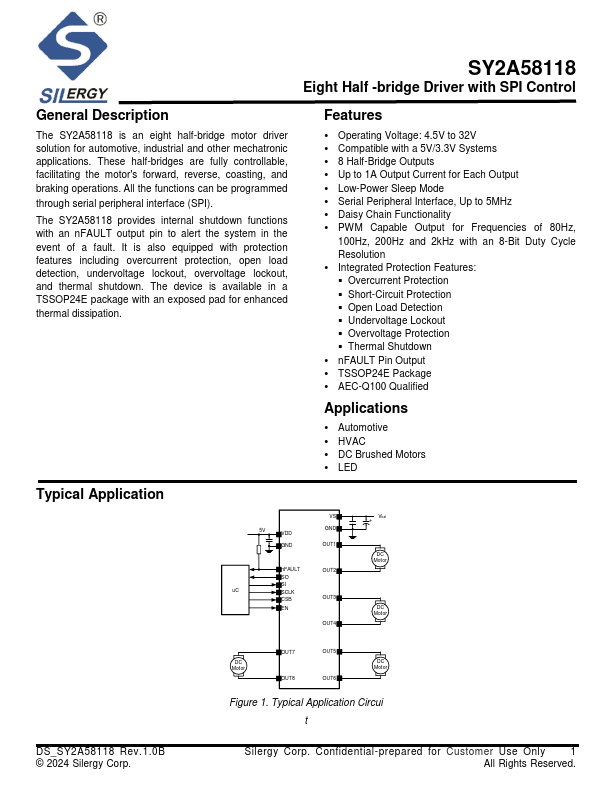

SY2A58118
SY2A58118 is Eight Half-bridge Driver manufactured by Silergy.
Eight Half -bridge Driver with SPI Control
General Description
The SY2A58118 is an eight half-bridge motor driver solution for automotive, industrial and other mechatronic applications. These half-bridges are fully controllable, facilitating the motor's forward, reverse, coasting, and braking operations. All the functions can be programmed through serial peripheral interface (SPI).
The SY2A58118 provides internal shutdown functions with an n FAULT output pin to alert the system in the event of a fault. It is also equipped with protection Features including overcurrent protection, open load detection, undervoltage lockout, overvoltage lockout, and thermal shutdown. The device is available in a TSSOP24E package with an exposed pad for enhanced thermal dissipation.
Features
- Operating Voltage: 4.5V to 32V
- patible with a 5V/3.3V Systems
- 8 Half-Bridge Outputs
- Up to 1A Output Current for Each Output
- Low-Power Sleep Mode
- Serial Peripheral Interface, Up to 5MHz
- Daisy Chain Functionality
- PWM Capable Output for Frequencies of 80Hz,
100Hz, 200Hz and 2k Hz with an 8-Bit Duty Cycle Resolution
- Integrated Protection Features
:
- Overcurrent Protection
- Short-Circuit Protection
- Open Load Detection
- Undervoltage Lockout
- Overvoltage Protection
- Thermal Shutdown
- n FAULT Pin Output
- TSSOP24E Package
- AEC-Q100 Qualified
Applications
- Automotive
- HVAC
- DC Brushed Motors
-...
