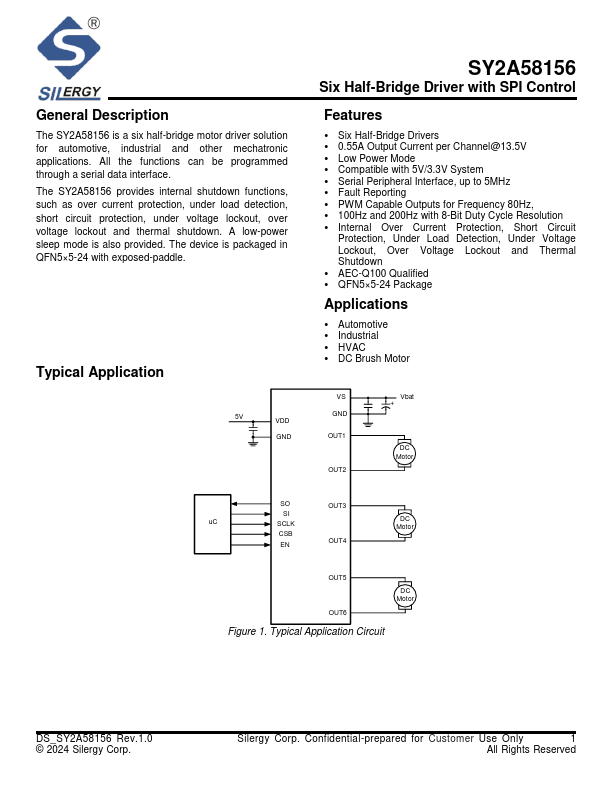

SY2A58156
SY2A58156 is Six Half-Bridge Driver manufactured by Silergy.
General Description
The SY2A58156 is a six half-bridge motor driver solution for automotive, industrial and other mechatronic applications. All the functions can be programmed through a serial data interface.
The SY2A58156 provides internal shutdown functions, such as over current protection, under load detection, short circuit protection, under voltage lockout, over voltage lockout and thermal shutdown. A low-power sleep mode is also provided. The device is packaged in QFN5×5-24 with exposed-paddle.
Typical Application
5V
Six Half-Bridge Driver with SPI Control
Features
- Six Half-Bridge Drivers
- 0.55A Output Current per Channel@13.5V
- Low Power Mode
- patible with 5V/3.3V System
- Serial Peripheral Interface, up to 5MHz
- Fault Reporting
- PWM Capable Outputs for Frequency 80Hz,
- 100Hz and 200Hz with 8-Bit Duty Cycle Resolution
- Internal Over Current Protection, Short Circuit
Protection, Under Load Detection, Under Voltage Lockout, Over Voltage Lockout and Thermal Shutdown
- AEC-Q100 Qualified
- QFN5×5-24 Package
Applications
- Automotive
- Industrial
- HVAC
- DC Brush Motor
VS GND OUT1
OUT2
Vbat +
DC Motor
OUT3
SI u...
