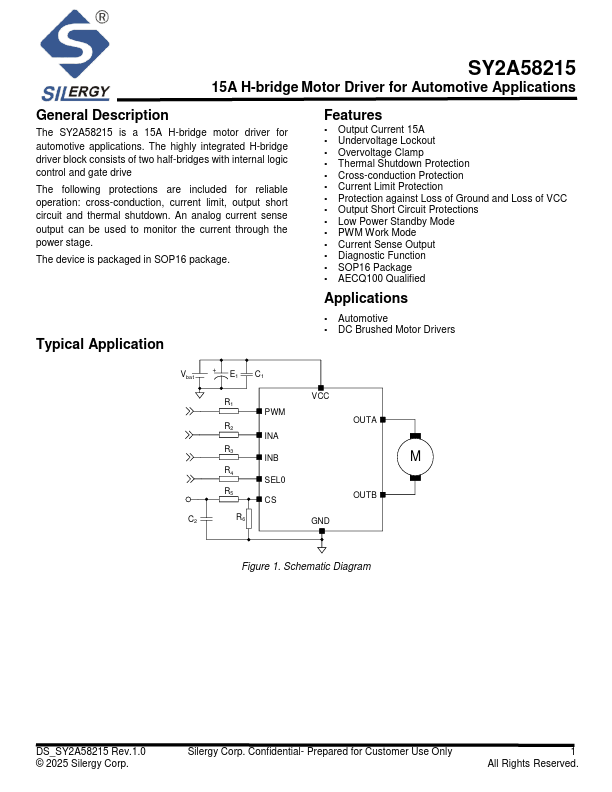

SY2A58215
SY2A58215 is 15A H-bridge Motor Driver manufactured by Silergy.
15A H-bridge Motor Driver for Automotive Applications
General Description
The SY2A58215 is a 15A H-bridge motor driver for automotive applications. The highly integrated H-bridge driver block consists of two half-bridges with internal logic control and gate drive The following protections are included for reliable operation: cross-conduction, current limit, output short circuit and thermal shutdown. An analog current sense output can be used to monitor the current through the power stage. The device is packaged in SOP16 package.
Typical Application
Features
- Output Current 15A
- Undervoltage Lockout
- Overvoltage Clamp
- Thermal Shutdown Protection
- Cross-conduction Protection
- Current Limit Protection
- Protection against Loss of Ground and Loss of VCC
- Output Short Circuit Protections
- Low Power Standby Mode
- PWM Work Mode
- Current Sense Output
- Diagnostic Function
- SOP16 Package
- AECQ100 Qualified
Applications
- Automotive
- DC Brushed Motor Drivers
Vbat
+ E1
C1
VCC R1
PWM OUTA
R2 INA
R3 INB
R4...
