Datasheet Details
| Part number | SSD1327 |
|---|---|
| Manufacturer | Solomon |
| File Size | 831.85 KB |
| Description | OLED/PLED Segment/Common Driver |
| Datasheet | SSD1327-Solomon.pdf |
|
|

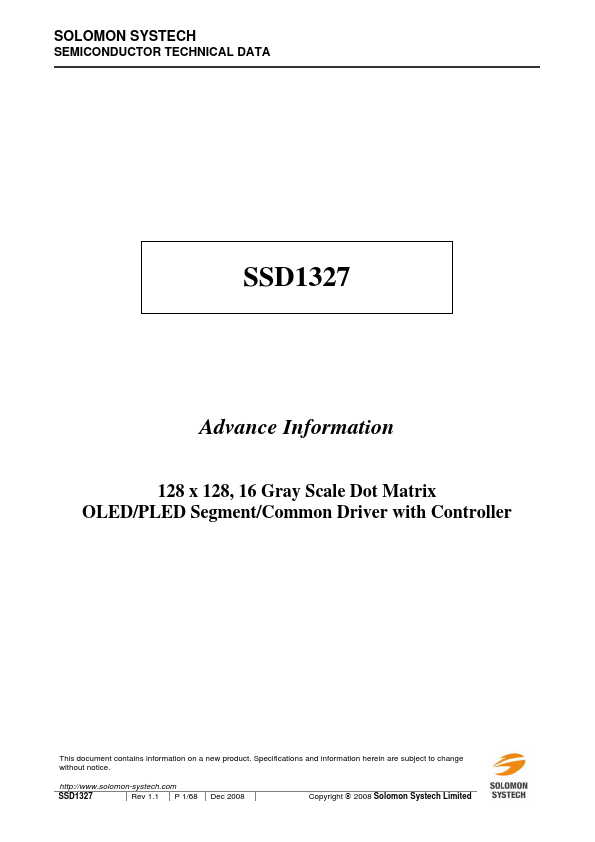

Overview: SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA SSD1327 Advance Information 128 x 128, 16 Gray Scale Dot Matrix OLED/PLED Segment/Common Driver with Controller This document contains information on a new product. Specifications and information herein are subject to change without notice. http://www.solomon-systech.com SSD1327 Rev 1.1 P 1/68 Dec 2008 Copyright © 2008 Solomon Systech Limited Version 0.10 0.20 0.30 1.0 1.1 Appendix: IC Revision history of SSD1327 Specification 1st release Change Items Effective Date 30-May-08 P.
| Part number | SSD1327 |
|---|---|
| Manufacturer | Solomon |
| File Size | 831.85 KB |
| Description | OLED/PLED Segment/Common Driver |
| Datasheet | SSD1327-Solomon.pdf |
|
|
|
section P.37, 38 Added notes for commands B1h and B8h on command table P.54 Updated the DC characteristics table P.55 Updated the AC characteristics table 04-Sep-08 P.8, 10 Revise die thickness tolerance from ±25um to ±15um P.11, 12 Revised the typo of LVSS to VLSS on the table of SSD1327Z Bump Die Pad Coordinates P.15, 39, 50 Added command D5h and corresponding information on the command table and related section P.49 Added display on and display off sequences P.62 Added notes (4) and (5) on the application example of SSD1327Z 21-Nov-08 Change to Advance information P.7 Added title “VCI and VDD range” for Table 2-1 P.35 Updated section 8.10 VDD regulator P.37 Revised command table of “Function Selection A (ABh)” P.49 Revised description of section 10.1.10 Function Selection A (ABh) P.49, 50 Revised section 10.1.11 Set display ON/OFF P.59 – 63 Updated the condition of AC characteristics from (VDD - VSS = 2.4V to 2.6V, VCI = 3.3V) to (VCI - VSS = 1.65V to 3.5V) on Table 13-2 to Table13-6 09-Dec-08 P.38 Added a note for command B6h on command table P.51 Revised the description of command B6h 23-Dec-08 Solomon Systech Dec 2008 P 2/68 Rev 1.1 SSD1327 CONTENT 1 GENERAL DESCRIPTION ....................................................................................................7 2
